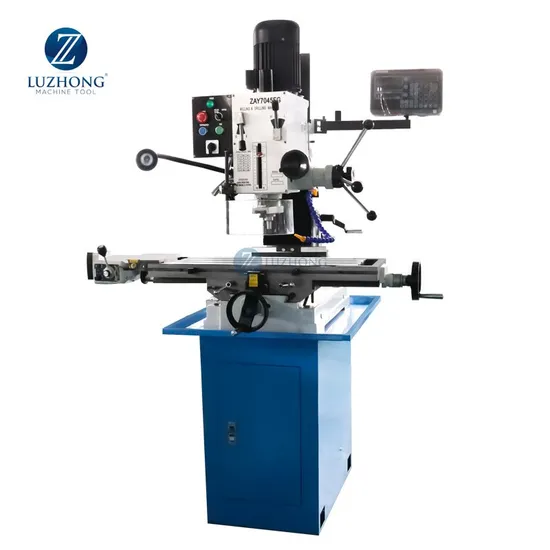

High Quality Metal ZAY7040FG Square Column Gear Drive Milling And Drilling Machine
Basic Info.
Model NO.
ZAY7040FG
Structure
Mill Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max.drilling dia.
40mm
Max.face milling capacity
80mm
Max.end milling capacity
32mm
Spindle travel
130mm
Spindle taper
M.T.4 or R8
Table travel
500*175mm
Table size
800*240mm
Main motor power
1.1kw
Transport Package
Plywood Case
Specification
770*880*1860mm
Trademark
Luzhong Machine Tool
Origin
China
HS Code
8459590000
Production Capacity
7000 Pieces/Year
Packaging & Delivery
Package Size
77.00cm * 88.00cm * 186.00cm
Package Gross Weight
373.000kg
Product Description
Luzhong cheaper high quality ZAY7040FG drilling and milling machine for saleProduct Description
Product Parameters
| Specification | ZAY7040FG |
| Max drilling capacity | 40mm |
| Max face milling capacity | 80mm |
| Ma.End milling capacity | 32mm |
| Max.distance from spindle nose to table | 450mm |
| Min.distance from spindle axis to column | 260mm |
| Spindle travel | 130mm |
| Spindle taper | M.T.4 or R8 |
| Step of spindle speed | 6 |
| Range of spindle speed 50Hz | 80-1250 r.p.m |
| 60Hz | 95-1500 r.p.m |
| Swivel angle of headstock(perpendicularly) | 90° |
| Table size | 800×240mm |
| Forward and backward travel of table | 175mm |
| Left and right travel of table | 500mm |
| Motor Power | 1.1KW(1.5HP) |
| Net weight/gross weight | 323kg/373kg |
| Packing size | 770×880×1160mm |
Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
