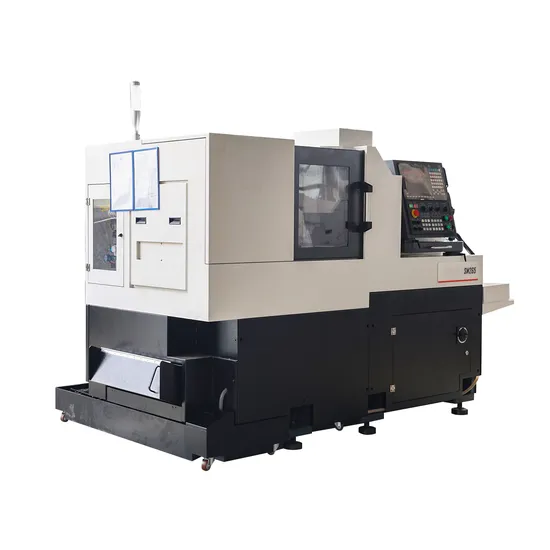

Compact Swiss CNC Lathe Machine for High-Quality Metal Fabrication and Precision Work

Compact Swiss CNC Lathe Machine for High-Quality Metal Fabrication and Precision Work

US$25,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
swiss lathe machine
Type
Multicut Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Table
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
System
Fanuc 0I TF-Plus /Syntec 220tb
Max.Rpm
Main8,000min-1/Sub8,000min-1
Main Spindle Stroke
210mm
Rapid Traverse Speed
32m/Min
O.D Tools
5X [16X16]
Back End Tools
4X [20-Er16]
Main Motor
5.5/7.5kw
Sub
1.5/2.2kw
Weight
4,500kg
Size
2760mmx1564mmx1882mm
Transport Package
Standard Packin
Specification
2760mm-1564mm-1882mm
Trademark
Wayne
Origin
China
HS Code
8458110000
Production Capacity
50000/Year

Product Description


Product Description
Discover the unparalleled versatility and precision of the Swiss-style lathe, also renowned as the CNC automatic lathe. This masterpiece of engineering in precision processing machinery offers an expansive range of functions, including tapping, milling, drilling, and turning operations with exceptional accuracy. Outfitted with groundbreaking dual spindles and an innovative double Y-axis, this machine excels in simultaneous processing, drastically reducing processing times. Its superior strength and efficiency make it ideal for batch production of complex, non-standard components, particularly precision hardware and shafts requiring bespoke shaping solutions.
Product Parameters
Items SX325
Mechanic System FANUC 0i TF-PLUS SYNTEC 220TB
Max.RPM Main8,000min-1/Sub8,000min-1 Main6,000min-1/Sub8,000min-1
Max.Turning Diameter φ32mm
Main Spindle Stroke 280mm
Rapid traverse speed 32m/min(X1:24m/min) 24m/min
Tools O.D Tools 6X [16×16]
I.N Tools 5X [φ20-ER16]
Cross Driven Tools(integration) 4X [ER16]
Back end tools(fixed) 4X [ER16]
Motors Main 5.5/7.5KW 5.9KW
Sub 1.5/2.2KW 3.9KW
Cross 0.55/1.1KW 1KW
Drive 0.75KW 1KW
Coolant 0.9KW
Others Coolant tank capacity 200L
Lubrication tank capacity 1.8L
Central Height 1,000mm
Weight 3,800Kg
The size (L×W×H) 2581×1563×1791mm
NC NC Control /Controllable Axes 7axis/4axis
LCD LCD 10.4"
System standard parameters Standard
Rigid tapping Standard
Hand wheel Standard
/ Synchronous/hybrid control Standard
Helical interpolation Standard


Items
Standard units
Hand wheel
/C+
Main/Sub axis C + brake

Floodlight

The product output device

Transformer

Centralized lubrication system

Three color light

Synchronus rotary guide bush holder unit
C:0.001°
C axis resolution: 0.001 °

Auxiliary shaft workpiece ejection device
M
Air blow on Sub spindle
Cooling box
0ptionanl units
Bar feeder

Long after loading device

Chip conveyor

Rectangular power seat

Oil cooler

Dynamic seat adjustable Angle

Gun drill

After the end of the quick change perspective

Oil mist collector
2[ER16]+1 [ER16]
2axis eccentricity tools (rotating)+1axis (fixed)

High pressure pump
3[ER16]
3axis eccentricity tools (rotating)

Thread whirling rings
3+[ER16]
Back end tools 3axis (rotating)+ 1 axis (fixed)

Detailed Photos
Application
Applications of Swiss Machining
Originally developed in the Swiss watchmaking industry, Swiss machining's applications have dramatically broadened, offering significant advantages to numerous sectors. Industries currently leveraging this state-of-the-art technology include:
1) Aerospace
The aerospace sector greatly benefits from the ultra-precise parts crafted through Swiss machining. Aerospace components, including fans and fasteners, are often manufactured using Swiss machines. With the use of metals like aluminum alloys and steel, these components are ensured to be durable and precise.
2) Medical devices
In the medical industry, Swiss-type lathe products are widely adopted for producing intricate components with high precision. This machining method is crucial in crafting surgical instruments and implants, underscoring the significant impact of Swiss-type lathe technology on medical device manufacturing.
3) Electronics
As modern electronics evolve into more compact and complex forms, traditional lathes fall short of meeting production demands. Manufacturers have shifted to advanced solutions like CNC Swiss machining, which excels in producing intricate electronic components such as connectors and pins with outstanding precision and efficiency.
4) Automotive
Swiss machining solutions are widely adopted in the automotive industry, driving forward the latest mechanical innovations. This technology facilitates the manufacture of smaller, more complex components essential for cutting-edge vehicles.
Automotive manufacturers harness this cutting-edge technology to produce suspension components, carburetor covers, and engine parts. The industry gains substantial advantages, including reduced costs, optimized manufacturing processes, and increased production speeds.
Our Advantages
1. Professional Supplier: Trust our expert team, dedicated to delivering superior precision machinery solutions tailored to your exact needs.
2. Best Quality: Benefit from unmatched quality standards that assure reliability and peak performance, highlighting our commitment to excellence.
3. Best Service: Enjoy exceptional customer service where your satisfaction is our top priority, ensuring a smooth and seamless experience from inquiry through to delivery.
4. Best Price: Capitalize on our competitively priced offerings that provide excellent value without compromising on quality or service.
Packaging & Shipping
FAQ
1.What products do we have ?
Machine :laser engraving machine ,laser cutting machine ,laser welding machine ,laser marking machine /cnc lathe machine ,swiss type cnc lathe machine ,cnc machine center
2.Why Choose us ?
1)Faster delievery time
2)Full set of production equipment
3)Any third party test can be accepted
4)Payment terms are more flexible ,both TT and LC can be accepted
5)Perfect Pre-sale and After-sale services can be provided within 24 hours online
3.What is the best advantage do we have ?
Best Quality ,Best service ,Best price
