US$4,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Application Area
Chemical
Feature 01
Special Ceramic Liner in Contacting Parts
Feature 02
Wear-Resistance
Feature 03
Corrosion-Resistance
Feature 04
with Electricity Heating System
Operating type
Continuous Operating
Mixer Type
Double Sigma Mixer
Transport Package
in Nude or Wooden Case
Production Capacity
40 Sets/Year
Product Description

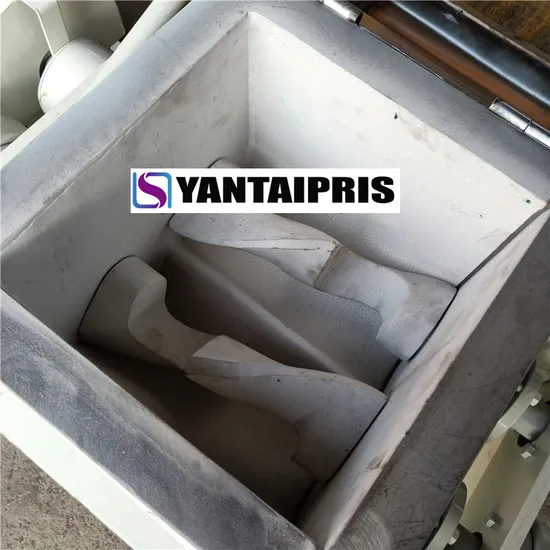

10L Customized special ceramic liner (Al2O3) double sigma mixer with good wear-resistance and corrosion-resistance performance!!!
Notes:Contacting parts adopt special ceramic liner,including the two sigma blades!
Notes:with electricity heating system.
Q1:Why do you need a double sigma mixer?
Usually speaking,we mostly use the followed types of mixers: V type mixer,ribbon mixer, coulter mixer, paddle mixer, double screw mixer, double sigma kneader, planetary mixer, etc. But only kneader and planetary mixer are suitable for high-viscosity materials mixing. Compared with planetary mixer,the kneader has a wider range of application to the viscosity of the material, but the material remaining and cleaning may not be as thorough as the planetary mixer. When customers have more colors or varieties,he should try to choose planetary mixers.
Q2:double sigma mixer applications:
It is widely used in high viscosity sealant, silicone rubber, neutral acid glass glue, chewing gum, bubble gum, pulp, cellulose, and also used in batteries, inks, pigments, dyes, medicines, resins, plastics, carbon, electrode pastes , Electrodes, rubber, cosmetics and other industries.
Q3:Technical Data:
Model | Volume | Drive(KW) | Discharging | Heating |
Full(L) | Effective(L) |
DSM-2 | 2 | 1.2 | 1.1 | Manual tilting | Steam | Electric |
DSM-5 | 5 | 3 | 1.5-2.2 | Manual tilting | Steam | Electric |
DSM-10 | 10 | 6.5 | 2.2-3 | Manual tilting | Steam | Electric |
DSM-50 | 50 | 33 | 5.5-7.5 | Tilting,Screw extruder | Steam | Electric |
DSM-150 | 150 | 100 | 7.5-11 | Tilting,Screw extruder | Steam | Electric |
DSM-200 | 200 | 130 | 11-18.5 | Tilting,Screw extruder | Steam | Electric |
DSM-300 | 300 | 180 | 18.5-22 | Tilting,Screw extruder | Steam | Electric |
DSM-500 | 500 | 330 | 22-30 | Tilting,Screw extruder | Steam | Electric |
DSM-1000 | 1000 | 650 | 37-110 | Tilting,Screw extruder | Steam | Electric |
DSM-1500 | 1500 | 920 | 37-110 | Tilting,Screw extruder | Steam | Electric |
DSM-2000 | 2000 | 1250 | 55-160 | Tilting,Screw extruder | Steam | Electric |
DSM-3000 | 3000 | 1950 | 75-220 | Screw extruder | Steam | Electric |
DSM-4000 | 4000 | 2500 | 90- | Screw extruder | Steam | Electric |
DSM-5000 | 5000 | 3300 | 110- | Screw extruder | Steam | Electric |
| | | | | | |
