Portable Powerful Pneumatic Rock Drill for Vertical Wet and Dry Drilling

Portable Powerful Pneumatic Rock Drill for Vertical Wet and Dry Drilling

US$150.00-800.00 1 Piece (MOQ)

Basic Info.

Model NO.
Y6/Y19A/Y20/TY24C/Y24/YH24/Y26/YT24/YT28/YN27C
Controlling Mode
Portable/Hand Held
Number of Shaft
Gasoline/Petrol
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Operation Power
Peumatic&Gasoline
Certificate
SGS&ISO9001:2008
Usage
Oncrete and Rock Drilling, Mining and Quarrying
Suitable
Drilling Blast Holes in Medium-Hard Rock/Second Bl
Hose Type
Both Air Hose and Water Hose Available
Operation
Both Hand-Held and with Air-Leg Available
Color
Green/Yellow/Blue/Red or Depends on Your Request
Drilling Depth
5meters
Drill Rod Shank
22(25)X108mm
Bore Diameter
32-42mm
Transport Package
Wooden Cases/Cartons
Specification
CE&SGS
Trademark
BESTLINK
Origin
Xiamen, China
HS Code
84671100
Production Capacity
1000sets/Month

Product Description

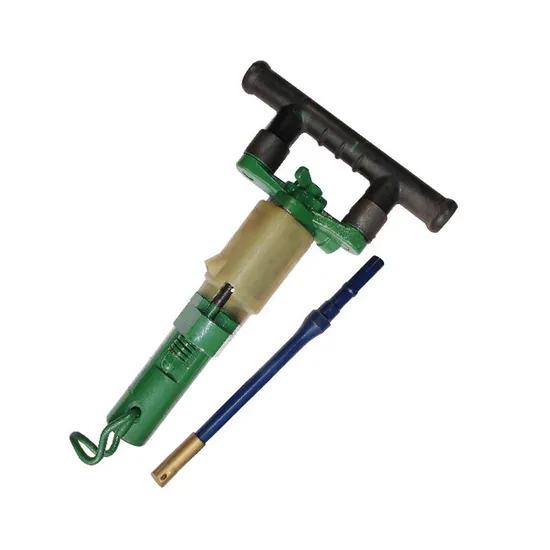

Portable Powerful Pneumatic Rock Drill for Vertical Wet and Dry Drilling
1. Y6, Y20, Y24&TY24C are intended for dry drilling,
2. YO18, Y19A, Y20LY, YH24&Y26 are for wet drilling.
3. Suitable for either drilling downward or incline of blast holes in medium-hard rock, of for second blasting operation.
4. Centrally grouped control, nimble starting, stable running and easy maintenance.
A. Pneumatic rock drilling machine
Y6, Y19A, Y20, Y24, TY24C, Y26 (Hand Operated);
YT24, YT27, YT28, YT29A (Air leg).
This type rock drills use compressed air as power, mainly used in construction sites, various types of mines, tunnel, railways, water conservancy construction and national defense construction areas for drilling operations.
YT24 YT28 pusher leg rock drills always works with support air leg, can be used for any angle drilling.
Y6, Y20, Y24, and Y26 hand held rock drills works without air leg, mainly use for downwards drilling.
B. Gasoline rock drilling machine
YN27C
This type rock drill adapt to outside situations where there is no water, no electronic power and no air compressor. It's a kind of hand held rock drill with gasoline engine, air pump and rotation plumbum equipment for running or stop. It can be used for breaking, drilling, blasting, tamping splitting and ramming.
Advantages of hand-held air rock drill:
A: Reasonable design
B: Convinient operation
C: Fast drilling velocity
D: Engery-saving
E: Efficient
F: Long service life of parts
G: Parts highly interchangeable and reliable performance etc
H: Both hand held and with airleg available.
Type Y6 YO18* Y19A* Y20 Y20LY*
Weight (kg) 6 18 19 18 18
LxW(Handie)xH (mm) 426(Length) 550x534x157 600x534x157 605x485x110 609x198x135
Cylinder stroke(mm) / 58*45 65*54 63*55 63*55
Air Consumption (L/s) ≤9.5 ≤25.5 37~43 25 ≤25
Air hose size (mm) 13 19 19 16or19 16or19
water hose size (mm) / 8 13 / 8
Bore dia (mm) 20 32-38 32-42 32-42 32-42
Drilling depth (m) 0.5 5 5 5 5
Shank (mm) 15x88 22x108 22x108 22x108 22x108

Type Y24 TY24C Y26 YH24
Weight (kg) 24 24 26 24
LxW(Handie)xH (mm) 604x485x162 610x485x158 650x534x125 604x485x162
Cylinder stroke(mm) 70*70 66.7*68 64*70 70*70
Air Consumption (L/s) 55 ≤45 ≤50 55
Air hose size (mm) 19 19 19 19
water hose size (mm) / / 13 13
Bore dia (mm) 32-42 32-42 32-42 32-42
Drilling depth (m) 5 5 5 5
Shank (mm) 22(25)x108 22x108 22(25)x108 22x108
