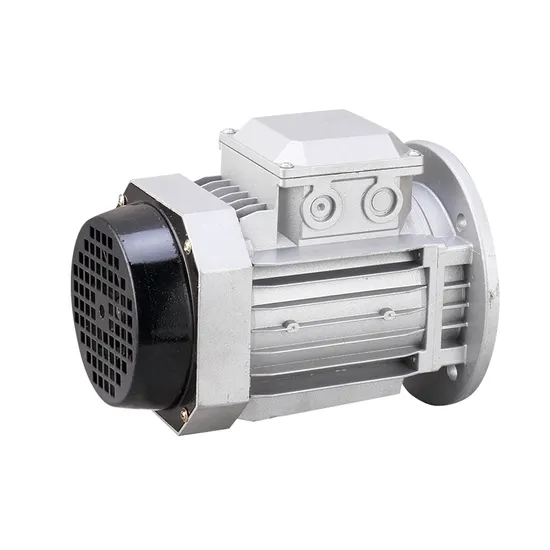

B5 High Quality Mechanical Equipment Three-Phase Square Aluminum Shell Case Motor

B5 High Quality Mechanical Equipment Three-Phase Square Aluminum Shell Case Motor

US$28.00-179.00 5 Pieces (MOQ)

Basic Info.

Model NO.
HQA B5
Number of Stator
Three-Phase
Species
Ye3
Rotor Structure
Squirrel-Cage
Casing Protection
Closed Type
Number of Poles
2,4,6,8
Starting Mode
Direct on-line Starting
Brand
Axd
Protect Feature
IP54
Usage
Machinery Equipment
Warranty
3months-1year
Phase
Three-Phase
Keywords
Aluminum Shell Asynchronous Motor
Product Name
Three Phase Aluminum Shell Asynchronous Motor
Material
Metal Steel
Matching of Mechanical Equipment
Style
Function
AC Motor Specification
Type
Asynchronous Motor
Efficiency
Ie3
Voltage
220V/660V
Frequency
50/60Hz
AC Voltage
220V/660V
Power
0.18~11kw
Transport Package
Polywood/Carton
Trademark
AXD
Origin
Zhejiang
HS Code
8501510090
Production Capacity
5000 Piece/Pieces Per Month

Product Description

Product series Three phase aluminum shell asynchronous motor
Product advantages Beautiful appearance, low noise, low vibration and long service life
Power 0.55~315KW
Frame No 63~355
voltage 110V~660V
frequency 50Hz/60Hz
style B5
Working system S1
insulation level F level
Enclosure protection grade IP54 or IP55
Use condition The altitude is not more than 1000 meters, and the ambient temperature varies with seasons, but the maximum temperature is not more than +40 , and the minimum temperature is not less than -15
Applicable equipment type Water pump, fan, transportation machinery, mixer, agricultural machinery, food machinery, woodworking machinery, boiler equipment, reducer, hydraulic equipment, air compressor, medical equipment and other mechanical supporting equipment with only single-phase power supply
Special instructions for customization requirements color ;material ;power;output shaft;appearance
FAQ Q: Do you offer OEM service?
A: Yes, we can customize it as your request.
Q: What is your lead time?
A: About 30 days after receiving deposit.
Q: What certificates do you have?
A: We have CCC, And we can apply for specific certificate for different country such as Ce of the European Union,SONCAP for Nigeria, SASO for Saudi Arabia, etc
Q:What about the warranty?
A: We offer 12month warranty period as the quality guarantee.
Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.
Q:What's your motor winding?
A: 100% copper winding
Q:Which port is near to you?
A: Ningbo port. And we can arrange to deliver Shanghai, Yiwu,Guangzhou or other Chinese cities, too.
Q:Could you offer Origin Certification.
A: we can do as your request.
