Min Glue Viscosity Regulator for Printing V-Guards Warrior Viscosity Controller Bml-V-10-D/Bml-V-15-D/Bml-V-20-D

Product Description

Product Description
V-GUARDS Warrior Viscosity Controller BML-V-10-D/ BML-V-15-D/BML-V-20-D
Samurai is committed to the "viscosity controller: development and production, its excellent quality, comprehensive after-salessupport, better service for the soft packaging industry. ApplicationThe machine is suitable for printing industry automatic dilution ink, and glue viscosity, simple and convenient use, without
manual adjustment ink, just according to product requirements, set a good viscosity value, pulse detector testing viscosity,
pneumatic diaphragm pump cycle ink and glue, safe, reliable and accurate detection of viscosity, using viscosity controller
automatic tracking monitoring, printing, composite, the viscosity of the coating
Product Features:
* improve printing quality, save labor and less ink
* automatic cleaning system: 70 seconds extreme cleaning, no human operation required
* automatic tracking: when the actual viscosity exceeds the preset value. The system sends its own alerts
* the design operators of the five modes choose different gears according to the requirements, which makes the operation easier
*2% control accuracy viscosity fluctuation range can be controlled within 0.5 seconds
* the minimum volume of similar products is designed for easy placement REMARKS:As the products are updated, V-Guards Model: V-10, V-15, V-20 is discontinued, only electronic valve models are available later V-Guards (i.e. V-10-d, V-15-D, V-20-D). Those who purchased V-Guards mechanical valves in the early stage can directly purchase products to upgrade the latest version of electronic valves or choose the mechanical valve as Model S, please be noted! Product Parameters

del	V-10	V-15	V-20
Dimension	300x320x750mm	300x320x750mm	300x320x750mm
Solvent tank	12L capacity, 304 stainless steel barrel	12L capacity, 304 stainless steel barrel	12L capacity, 304 stainless steel barrel
Net Weight	17.5KG	20KG	23KG
Control range	Zahn Cup 13-30 sec	Zahn Cup 13-30 sec	Zahn Cup 13-60 sec
ln-tube	6.5x10mmx2.5m	8x12mmx2.5m	11x16mmx2.5m
Out-tube	8x12mmx2.5m	11x16mmx2.5m	25x16mmx2.5m
Ink circulation	1.5-4.5L/min	3.5-9L/min	7.5-19L/min
Air consumption	40L/min	90L/min	160L/min
Working pressure	0.3Mpa	0.3Mpa	0.3Mpa
Working voltage	220V,40W	220V,40W	220V,40W
Add one piece diaphragm pump	10#	15#	20#
Application	Roto-gravure or Flexo Printing (Sub Tank under 20L)	Roto-gravure or Flexo printing Laminating,Coating (Sub Tank under 40L)	Roto-gravure or Flexo printing Laminating,Coating (Sub Tank over 40L)

Detailed Photos

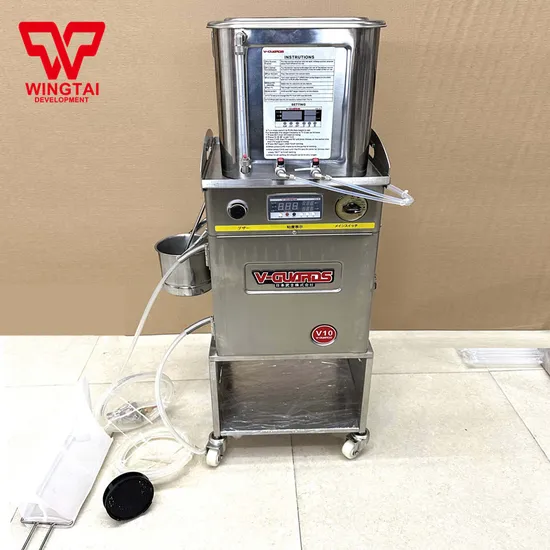

Model: BML-V-10-D (Mechanical valve)Dimension: 300x320x750mm
Solvent tank: 12L capacity, 304 stainless steel barrel
Control range: Zahn Cup3#/ 13-30 secln-tube: 6.5x10mmx2.5mOut-tube: 8x12mmx2.5mInk circulation: 1.5-4.5L/minAir consumption: 40L/minWorking pressure: 0.3MpaWorking voltage: 220V,40WApplication: Roto-gravure or Flexo Printing
(Sub Tank under 20L) Model: BML-V-15-D(Mechanical valve)Dimension: 300x320x750mm
Solvent tank: 12L capacity, 304 stainless steel barrel
Control range: Zahn Cup 13-30 sec
ln-tube: 8x12mmx2.5m
Out-tube: 11x16mmx2.5m
Ink circulation: 3.5-9L/min
Air consumption: 90L/min
Working pressure: 0.3Mpa
Working voltage: 220V,40W
Application: Roto-gravure or Flexo printing
Laminating,Coating
(Sub Tank over 40L) Model: BML-V-20-D (Mechanical valve)Dimension: 300x320x750mm
Solvent tank: 12L capacity, 304 stainless steel barrel
Control range: Zahn Cup3#/ 10-60 sec
ln-tube: 11x16mmx2.5m
Out-tube: 25x16mmx2.5m
Ink circulation: 7.5-19L/min
Air consumption: 160L/min
Working pressure: 0.3Mpa
Working voltage: 220V,40W
Application: Roto-gravure or Flexo printing
Laminating,Coating
(Sub Tank over 40L)
