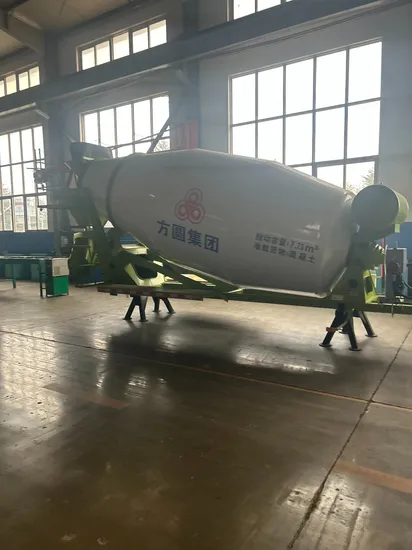

High Capacity 9m³ Concrete Mixer Truck
Basic Info.
Type
Concrete Mixing Truck
Machining Process
Welded Molding Machine
Structure
Cylinder Type
Certification
ISO9001: 2000, CE
Condition
New
Color
According to The Customer′s Requirement
Capacity
9m³
Specification
10050*2500*3950mm
Trademark
FYG
Origin
China
HS Code
8705400000
Production Capacity
10 Units Per Month
Product Description
Product DescriptionProduct features:
High-quality wear-resistant steel guarantees a long service life
Reliable drive components ensure smooth operation.
High loading volume thanks to high water line.
Perfect driving characteristics thanks to a low center of gravity
Weight- optimised truck mixer for maximum payload
Simple and fast cleaning thanks to smooth rear wall surfaces.
| Model | FYG5257GJB | ||
| Parameter | Effective stirring volume(m3) | 9-10 | |
| Dimensions (mm) LxWxH | (8695)9020x2496x3850 | ||
| Curb weight (kg) | 13035 | ||
| Total weight (kg) | 25000 | ||
| Wheelbase(mm) | 3625+1350 | ||
| Chassis parameter configuration | Type | N3 | |
| Chassis model | ZZ1257N3647C | ||
| Drive form | 6x4 | ||
| Fuel type | Diesel | ||
| Engine model | WD615.95C | ||
| Power/speed (kW/rpm) | 250/1800-2000 | ||
| Emission Standards | China Emission Standards II,III | ||
| Tire model | 12.00R20 | ||
| Mixerparameter configuration | Feed rate(m3/min) | >3 | |
| Feed rate(m3/min) | >2 | ||
| Discharge residual rate | <0.3% | ||
| Slump range(mm) | 90-210 | ||
| Water supply method | Air pressure | ||
| Tank volume( L) | 300(can be customized according to the situation) | ||
| Work pressure(Mpa) | 0.35-0.4 | ||
| Hydraulic system (original imported)Can be customized | Oil pump | 90ml/r | |
| Motor | 90ml/r | ||
| Reducer | 60000N.m | ||
| Scope of use | Foreign,can be customized according to the situation | ||
