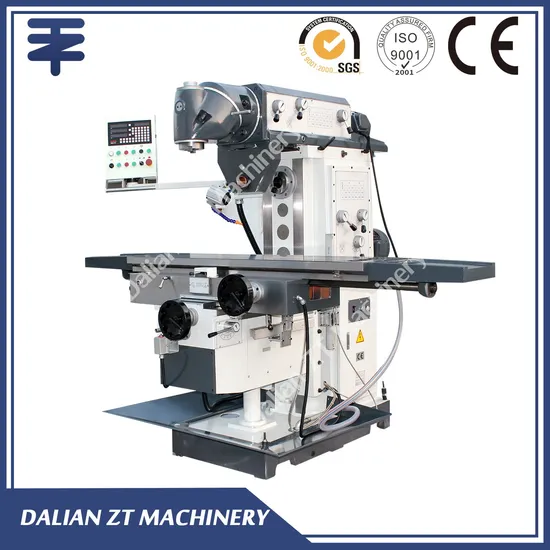

XL6436CL Conventional CNC RAM Universal Milling Machine 1600x360mm Worktable

Product Description

Features:
* The milling machine with automatic feed controlled one servo motor in X,Y,Z-axis;
* One handle is used to control forward/backward movement in X,Y,Z-axis

Specifications	Unit	XL6436	XL6436C		XL6436CL
Table size	mm	1325×360			1600×360
Table travel (X/Y/Z)	mm	750/320/460		1100/320/450	1300/320/450
Table feed(X/Y/Z)	mm/min	30~750/20~500/15~375
Spindle taper		7:24 IS050 (H) 7:24 IS050 (V)
Arm travel	mm	550
Distance between spindle nose and table surface	mm	196-656	196-646
Distance between horizontal nose and table surface	mm	20-480	20-470
Distance between spindle axis and arm surface	mm	200
Spindle speed range	r.p.m	12 steps 60-1750 (V) 12 steps 60-1800 (H)
T-slots(NO./width/pitch)	mm	3/18/80
Main motor power	Kw	5.5 (H) 4 (V)
3-P feed Ac servo motor torque	N.m	10
Overall size	mm	1800×2100×2000	2245×2100×2000		2520×2100×2000
Net weight	kg	2685	2750		2800

Standard accessories:

Name	Model no.	Q'TY
7:24 middle cover	7:24 ISO50/MS4	1
Horizontal arbor assembly	Ф27	1
Horizontal arbor assembly	Ф32	1
Drawbar	M24	2
Double-ended wrench	S22-24	1
Double-ended wrench	S17-19	1
Double-ended wrench	S36-41	1
Inner hexagonal wrench	5	1
Inner hexagonal wrench	10	1
Inner hexagonal wrench	14	1
sleeve	M24	1
Washer	M24	1
Taper shank sets milling cutter arbor	7:24 ISO50-Ф32	1
Work lamp	incandescent lamp	1
Coolant system		1
Manual lubrication
Chip tray		1

FAQ
1. How can I choose the most suitable machines ?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.

3. Is machine tested ?
A: The accuracy, noisy will be tested according to China GB standard.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5. What's the Payment Terms ?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.

6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.
