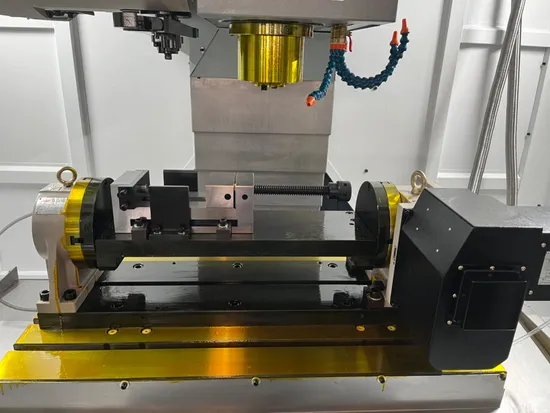

CNC Milling Machine High Precision
Basic Info.
Model NO.
VMC600 HV600 XH1160 XH7160
Type
Worktable Milling Machine
Object
Tool
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
ISO 9001
Condition
New
Net Weight
5000g
Maximum Machining Length
1000*600
System
Siemens 808d
Transport Package
Packed in Wooden Cases with Steel Bottoms
Specification
3250*2300*2500
Trademark
xing
Origin
China Linyi
HS Code
8458110090
Production Capacity
1000
Packaging & Delivery
Package Size
3900.00cm * 2300.00cm * 2500.00cm
Package Gross Weight
7000.000kg
Product Description
| item | specification | |
| 1 | table area | 1100*600 |
| 2 | table load bearing | 800kg |
| 3 | T | 5-18*90 |
| 4 | X/Y/Z stroke | 1000*600*600 |
| 5 | rapid feed of X/Y/Z | 24/24/20 |
| 6 | distance from spindle end face to working surface | 120-720 |
| 7 | distance from spindle end face to working | 560mm |
| 8 | Rapid feed X/Y/Z | 24/24/20m/min |
| 9 | X/Y/Z motor speed | 2500 |
| 10 | ||
| 11 | Ball screw X/Z | 4010/4010/4010 |
| 12 | Spindle speed | 50-8000RPM |
| 13 | Spindle nose | BT40 |
| 14 | Spindle bore | 56mm |
| 15 | Power of main motor | 11/15KW |
| 19 | Number of tool holders | 24 |
| 26 | positioning accuracy X/Y/Z | 0.015/0.015/0.015mm |
| 27 | repositioning accuracy X/Y/Z | 0.008/0.008/0.008mm |
| 28 | Overall dimensions of machine | 2500x2300x2350mm |
| 29 | Case dimensions of machine | 2500x2300x2350mm |
| 30 | Net weight /gross weight of the machine | 6500/7200kg |
Shandong Linyi Golden Star Machine Tool Co., Ltd.the original linyi machine tool plant, founded in 1965, is a research and development, production and manufacturing mechatronics CNC machine tool products and characteristics of export products for the main business of state-level high-tech enterprises, with annual production of CNC lathe, vertical machining centers, CNC milling machine, engine lathe, multi-purpose machine, surface grinding machine, etc. The comprehensive production capacity of more than Taiwan. The company has passed THE ISO9001 international quality system certification, and enjoys the right to import and export. It is a patent star enterprise in Shandong Province, with provincial enterprise technology center, provincial one enterprise one technology RESEARCH and development center, municipal engineering technology research center and key laboratory of high-grade CNC machine tool enterprises.
The company is the professional and technical personnel education base in Shandong Province, with 32 scientific research personnel, one expert with outstanding contribution and six senior titles enjoying the special allowance of The State Council. At present, the company has 24 national patents and 5 software Copyrights. Presided over the formulation of JBCPZT1319-2019 CNC double-head vehicle industry standard, and participated in the formulation of JB/T8326 CNC Instrument Horizontal Lathe industry standard.
