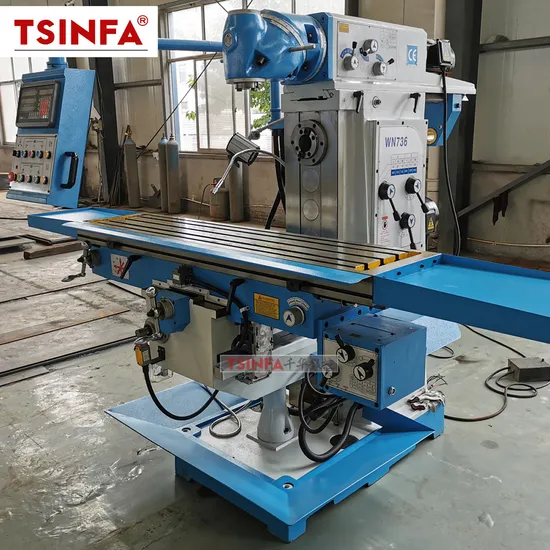

Manual Milling Machine Wn736 Vertical Universal Milling Machine Hot Sale

Product Description

Product Description
The main performance characteristics:
The universal milling machine can be equipped with various tools to machine milling planes, slopes, grooves, etc. If universal milling heads, circular workbenches, indexing heads, and other milling machine accessories are used, the machining range of the machine tool can be expanded. Suitable for processing special steel molds, mining equipment, industrial equipment, and other heavy and large-scale machinery. When the workbench rotates a certain angle and the indexing head attachment is used, various spiral surfaces can be machined.
-Milling head can be rotated 360 degrees -Worktable 45 degree rotation (optional for some models)
-XY axis automatic feed -Worktable electric lift
Product Parameters

Specification	Unit	WN736	WN736A	WN736C	WN736D	WN736B ( Servo Motor )
Table size	mm	1500*360	1600*360	1600*320	2000*400	1600*360
Numbers,width distance between T - slot	mm	3*18*80	3*18*70	3*18*70	3*18*90	3*18*80
Table travel (X/Y/Z)	mm	900*320*450	900*300*400	800*300*400	1180*300*365	1200*300*400
Travel of Arm	mm	600	600	600	600	600
Swivel angle of the vertical milling head	degree	±360°	±360°	±360°	±360°	±360°
Max. rotary angle of table	degree	/	±45°	±45°	/	±45°
Distance from horizontal spindle to ram bottom	mm	170	200	200	200	210
Spindle taper	taper	ISO50(H) ISO40(V)	ISO50(H) ISO50(V)	ISO50(H) ISO50(V)	ISO50(H) ISO50(V)	ISO50(H) ISO50(V)
Level spindle speed grade	steps	12	12	18	18	12
Level spindle speed range	rpm	60-1800	60-1800	30-1500	30-1500	60-1800
Milling Head spindle speed grade	steps	11	12	12	12	12
Milling head spindle speed range	rpm	35-1600	60-1700	60-1700	60-1700	60-1700
Grade of the work-table feeds	steps	8	6	18	18	6
Range of feed speeds	mm/min	22-555	460/360/90	X: 23.5-1180, Y:23.5-1180, Z:8-394	X: 23.5-1180, Y:23.5-1180, Z:8-394	Stepless 0.1-700
Speed of rapid travels	mm/min	555	X:1360, Y:1140, Z:300	X:2300, Y:2300, Z:770	X:2300, Y:2300, Z:770	2000/700
Main motor power	kw	4(H) 4(V)	4(H) 4(V)	7.5(H) 4(V)	11(H) 4(V)	5(H) 4(V)
Feed motor	kw	0.75	1.5	1.5	3	1.5
Coolant pump	w	40	40	125	125	40
Gross weight/Net weight	kg	2300/2100	2800/2400	3500/3300	4500/4250	2800/2400
Overall dimensions(L W H)	mm	1900X1600X2050	2000X1900X2050	2050X2050X2050	2400X2000X2150	2000X1900X2050
Packing Size	mm	2000X1700X2250	2100X2000X2250	2250X2250X2250	2500X2260X2250	2100X2000X2250

Detailed Photos

Certifications

Company Profile
Shandong TSINFA CNC Equipment Co., Ltd. was founded in 2005, The registered capital is 20 million yuan. The company has independent import and export rights, and obtained the European quality management council CE certification. The company is located in the south of Shandong province Mozi hometown, Beijing-Shanghai high-speed railway, Beijing-Fuzhou expressway, 104 national highway through the north and south, to the south is Weishan lake, to the north lies mount tai, convenient transportation, industrial development. As a member of China machine tool industry association (CMTBA), passed the ISO 9001:2015 quality management system certification, the company is constantly innovating in the development, relying on the strong economic strength, advanced and sophisticated professional production equipment, strong technical force, to standardize the entire operation of the enterprise management system mode. Products cover metal cutting machine and metal forming machine two categories. Metal cutting machine tools are: CNC machining center, CNC lathe, inclined bed CNC lathe, general lathe, vertical milling machine, horizontal milling machine, universal milling machine, turret milling machine, drilling and milling machine, slotting machine, gouging machine, turning milling complex machining center, etc. The equipment is exported to USA, Poland, Russia, Sri Lanka, Peru, Chile, Saudi Arabia, southeast Asia and Africa and other countries and regions. It is widely used in automobile, motorcycle, textile machinery, hardware products, 3C, construction machinery, home appliances, railway, ship, other industries. We adheres to the quality of integrity, ensures that every equipment is qualified to leave the factory, to ensure that they can do their best for employees and customers. Packaging & Shipping

FAQ

Q1:How can l choose the most suitable machines ? Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you . Q2: What's your main products of your company? Products cover metal cutting machine and metal forming machine two categories. Metal cuttinging machine tools are: CNC machining center, CNC lathe, manual lathe, manual milling, sawing machine, etc. Metal forming machine: hydraulic press machine. Q3: Where is our factory located? How can l visit there? Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.You are warmly welcomed to visit us. Q4. How do you transport it? Provide Transportation Solution DDP/CIF/FOB/FCA Q5: What's the Payment Terms ? T/T ,30% initial payment when order,70% balance payment before shipment . 06: What's the MoQ? A: 1 set .(Only some low cost machines will be more than 1 set ) We want to know: 1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model! 2.lf need ClF Price, please kindly tell us the port of destination.
