Factory Direct! ! Diesel Excavator New Chinese 388h Mini Small Excavator Tractor Wheel Best Backhoe Loader with Towable for Low Price

Factory Direct! ! Diesel Excavator New Chinese 388h Mini Small Excavator Tractor Wheel Best Backhoe Loader with Towable for Low Price

US$20,000.00
1-9 Pieces
US$15,000.00
10-49 Pieces
US$10,000.00
50+ Pieces

Basic Info.

Model NO.
388H
Type
Backhoe Loader
Usage
Multi-Purpose Backhoe Loader
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
>1.5m³
Size
Large-Scale
Certification
CE, ISO9001: 2000
Condition
New
Rated Load
2500kg
Operating Weight
9300kg
Rated Digging Bucket Capacity
0.3m3
Max. Digging Depth
5100mm
Max. Digging Radius
5340mm
Wheel Base
2250mm
Wheel Tread
2000
Drive
4X4
Ground Clearance
410
Displacement
4.8L
Transport Package
Sea Cabinet
Specification
7600*2260*2890mm
Trademark
DAOJ
Origin
Shandong Weifang
HS Code
8429510000
Production Capacity
1000pieces/Year

Packaging & Delivery

Package Size
760.00cm * 226.00cm * 289.00cm
Package Gross Weight
9300.000kg

Product Description

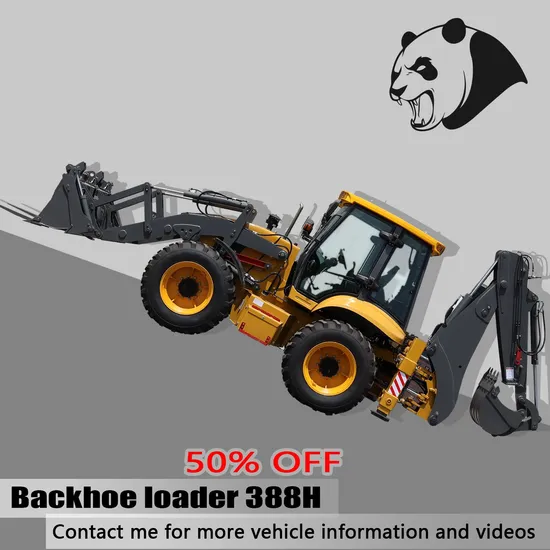

388H backhoe loader
Equipped with an 85kw YUCHAI engine JCB same type boom The maximum excavation depth is 5070mm,
Maximum loading height 3740mm Manipulate hydraulic synchronous shifting High definition LCD display screen
Openable rear windshield window With sunshade curtains Fire Extinguisher Fuel tank sensor
Reverse camera air conditioner 4X4 4F/4R
otal length(bucket at ground) 6400±80mm
(Total width ) 2450±20mm
Bucket width) 2380mm±20mm
Total height (cabin top) 3250±10mm
Total height (digging boom top) 3740 ±20mm
Wheel base) 2250±10 mm
Wheel tread) 2000 ±10mm
drive) 4X4
Ground clearance) 410mm
Load main technical parameter)
Rated load) 2500KG
Operating weight) 9300kg
Rated bucket capacity) 1.2m³
Max. Dumping height (41o dumping angle) 3050±50 mm
Dumping distance) 700±20 mm
Turning radius) Tires outside 5750±50mm
Digging main technical parameters)
Rated digging bucket capacity) 0.3m³
Max. Digging depth) 5070±20 mm
Max. Digging radius) 5345±20mm
Max. Loading height) 3740±20mm
Max. Digging force) 5100kgf
Max.Digging height) 5470 ±20mm
Lifting force at Max. Digging radius) 1220kg
Transmission


Hydraulic torque convertor
Model 280

Cooling way

Pressured oil circle

Gearbox)
Type Mechanically Operated Hydraulic Synchronized Shift
Driving axles
Model Four-wheel drum brakes E110

Gear shift
4 F, 4 R
Forward 4 Backward 4
Tyres model 16.9-28
Hydraulic system )
Working pump displacement) 63ml/r
Working pump pressure 20Mpa
Diverter model BZZ5-250
Digging attachments(hydraulic hammer)
Rod diameter mm 68-70
Working pressure Mpa 11-14
Impact frequency 500-900
Flow scope L/min 25-45
kinetic energy KN 49
Oil capacity
Hydraulic oil tank 125
Fuel tank 125
388H Standard Configuration
Engine Yuchai; GUOII
Driving Cab high strength
Air Conditioner mechanical control
Rear View Camera RVC HD reversing image
Gear Box Green chi
Driving Axle Green chi
Hydraulic Pump Weichai transmission control
Steering gear & Priority Valve Shandong Pengli
Hammer Line Reserved
Side Shift Hydraulic
Tires 16.9-28

About Us
Our Advantages
Why choose us?
Choose our construction machinery because we provide efficient, reliable and safe construction solutions. Our products use advanced technology to ensure efficient construction, while focusing on energy conservation and environmental protection, in line with the concept of sustainable development. We have a strong brand strength and a complete after-sales service system, and can provide customers with all-round support. Whether it is a large-scale engineering project or a daily construction task, our construction machinery can meet your needs and help you successfully complete the construction task.
FAQ Q1: How long is the Warranty for DAOJ product? A1: DAOJ provides 12 months or 1000 hours for the whole machine from on board time. Q2: How about the delivery time?
A2: Usually DAOJ producing time is 15- 40 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q3: What kind terms of payment can be accepted?
A3: :Normally we can work on T/T term or L/C term.
Q4: Can DAOJ provide customized products? OEM products or ODM products?
A4: Yes, DAOJcan provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special request.
Q5: Could we request our own color for the products?
A5: Yes, of course
