Big Farmland Use Td Chassis Tractor with Roll Bar and Roof 110 Horse Power Can Do Heavy Jobs

Product Description

big farmland use TD chassis tractor with roll bar and roof 110 horse power can do heavy jobs

TD Chassis Tractor is Big and Heavy Tractor. We use TD Chassis to Manufacture Tractor From 85Hp to 150Hp Tractor. Following is our TD chassis 110 horse power tractor with A/C Cabin model. This kind tractor has big size tire. We also install TZ-10 Model Front End Loader in it. The loader can help tractor to realize the functions of loading, unloading, shoveling and digging. Following is the tractor and front end loader configuration, please check.
LIFTOR Tractor Features:
1. LIFTOR series tractor is designed for multiple light works, such as farming, transportation etc.
2. Equipped with Chinese famous diesel engine, It has the advantage of high cost efficiency and fuel efficiency, low maintenance cost and good working performance.
3. Using central console and mature structure, the tractor is easy to control and maintain.
4. 8F+2R gearbox with easy operation and convenient maintenance;
5. Optional single/double action clutches for different needs and operation;
6. Optional Herringbone tires, paddy tires or other type of tires to meet your needs of working conditions.
7. Hydraulic power steering(4WD) makes it easy to control and reduce the labor strength of operator.
Tractor Parameter:

TD series tractor(90hp to 150hp tractor)
Product model	HX904	HX1004	HX1104	HX1204	HX1304	HX1404	HX1504
Wheel drive	4×4
Dimension	L*W*H 4530×2050×2930mm
Weight	3690-3840kg
Front wheel tread	1490,1580,1650,1740mm limited adjustable
Rear wheel tread	1520,1620,1740,1850mm limited adjustable
Wheel base	2195mm
Min land clearence	405mm
Gear shifts	16+8
Tire size	standard tire:12.4-24/16.9-34, biger tire: 14.9-24/18.4-34
Steering gear	Hydraulic steering
Rear Suspension	Three point linkage
Engine Specification
Engine model	YTO or Weichai
Engine type	water cooled, vertical, 4 stroke and direct injection
Rated power(kw)	66.1	73.5	80.88	88.2	95.5	102.9	110.2
Rated revolution	2300/2400 r/min
Start way	Electric start
Transmission	4×(2+1)×2 shifts
Clutch	Double stage clutch, dry friction
PTO speed	6 splined 540/1000

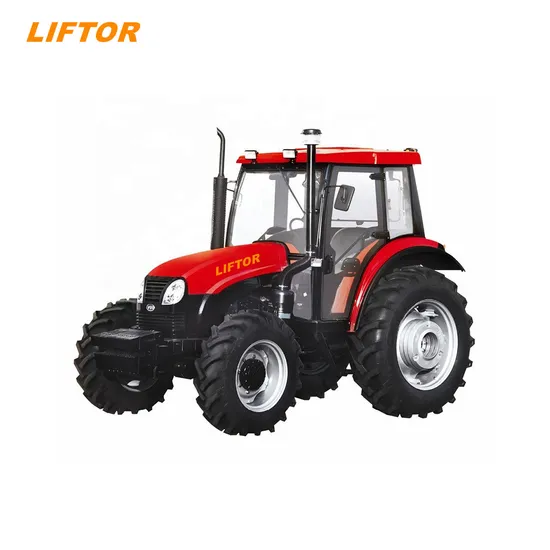

LIFTOR Tractor Pictures:
Optional Implements for Tractor :
About US:
"Liftor Enterprises" is a high-tech enterprise professionally specialized in R&D, production, sales, service of electric storage,intelligent industrial system, agriculatural tractor, lifting machine and wheel loader. It is located in Nanjing, Jiangsu Province with advanced forklift manufacturer technology, processing equipment and perfect product testing center.Our company is the China Automobile Industry Association member unit. We won the honorary title such as "Outstanding Enterprise of Quality Management, Credibility and Service AAA level", "National Enterprise of Good Creditworthiness", "National Quality Management Advanced Enterprise" etc. The company has already passed the safety production standardization and the quality authentication of ISO9001:2008 and European Union CE certification, fit-out national patent certificate.Our main equipment are agriculatural tractor, lifting machine, wheel loader and forklift. It is widely used in various places of modern logistics.
FAQ:
1. Manufacturer or Trading Company?We are leading tractor manufacturer for 20 years, and specialize in 12-240Hp tractors in China.
2. MOQ: Mini tractor: 8 units; Middle tractor(25-40hp): 2 units; Above 50hp: 1 unit
3. Spare Parts: Free toolbox and easy damaged parts.
4. Shippment: We can help you arrange shippment.
5. Delivery Time: Usually 25 days. In peak season,30-40 days
6. Warranty Time: Complete service system, 12 months since arrival of destination port
7. Payment Terms: We accept 30%T/T in advance, and 70% T/T before delivery
8. Tractor Options: Can be equipped with ROPS, Canopy, Cabin, AC Cabin, Air Brakes, Hydraulic Valve Out, Paddy Tire or as per your requirements.
9. Tractor Logo: We have our own logo. And we also can put your logo for free.
10. Package and Loading: (1).complete tractor package: 2 units/20GP, 4 units/40HQ;(2).Iron Frame Package: 8 units/20GP, 16 units/40HQ
11. Tractor Implements: Rotary tiller, disc plow, furrow plow, cultivator, front end Loader, backhoe, Mower, Trailer, Snow Blower or as per your requirements.
12. Part supply: Complete Parts Workshop, and can supply all parts
