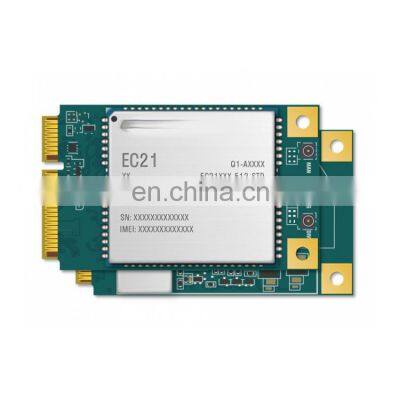

10Mbps/5Mbps EC21-AU Mini PCIe LTE Cat 1 Module, EC21AU EC21 AU LCC LGA 4G Module

10Mbps/5Mbps EC21-AU Mini PCIe LTE Cat 1 Module, EC21AU EC21 AU LCC LGA 4G Module

Product Description

Product Description
DescriptionLTE EC21-AU● LTE category 1 module● 32.0mm × 29.0mm × 2.4mm● LCC form factor● Max. downlink 10Mbps / uplink 5Mbps● Extended temperature range of -40°C to +85°COverview● The EC21-AU is an LTE category 1 module in an LCC form factor measuring 32.0mm x 29.0mm x 2.4mm, which meets the 3GPP Release 12 standard. The EC21-AU is compatible with UMTS/HSPA+ UC20 and UC200T modules, and multi-mode LTE Standard EC25, EC20 R2.0, EC20 R2.1, EG25-G and EG21-G modules. It is therefore backward-compatible with existing EDGE and GSM/GPRS networks, enabling easy migration between LTE and 2G or 3G. The EC21-AU is optimized for networks in Australia, New Zealand and Latin America.● The EC21-AU provides cost-effective, low-power LTE connectivity, delivering maximum downlink rates of 10Mbps and uplink rates of 5Mbps under LTE, and multiple-input multiple-output (MIMO) technology meets demands for data rate and link reliability. This makes the series ideal for IoT applications which are not reliant on high-speed connectivity but do require the longevity and reliability of LTE networks.● The EC21-AU supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou and Galileo), and the integrated GNSS greatly simplifies product design, and provides quicker, more accurate and dependable positioning. A wide range of internet protocols, industry-standard interfaces and functionalities (such as USB serial drivers for Windows 7/8/8.1/10, Linux, Android and eCall) allow the module to serve a wide range of IoT applications including smart metering, wearable devices, environmental monitoring, asset tracking, fleet management, and security systems.Key Features● Compatible with UMTS/HSPA+ UC20 and UC200T modules, and multi-mode LTE Standard EC25, EC20 R2.0, EC20 R2.1, EG25-G and EG21-G modules● Supports Qualcomm® IZat™ location technology Gen8C Lite● Supports DFOTA● Supports DTMF● Supports MIMO● Multi-constellation GNSS receiverLTE EC21-AU mPCIe● LTE category 1 module● 51.0mm × 30.0mm × 4.9mm● Mini PCIe form factor● Max. downlink 10Mbps / 5Mbps uplink under LTE● Extended temperature range of -40°C to +80°COverview● The EC21-AU Mini PCIe is an LTE category 1 module in a standard PCI Express® Mini Card form factor measuring 51.0mm × 30.0mm × 4.9mm, which meets the 3GPP Release 11 standard. The EC21-AU Mini PCIe is optimized for networks in Latin America and Australia.● The EC21-AU Mini PCIe provides cost-effective, low-power LTE connectivity, delivering maximum downlink rates of 10Mbps and uplink rates of 5Mbps under LTE, and multiple-input multiple-output (MIMO) technology meets demands for data rate and link reliability. This makes the series ideal for IoT applications which are not reliant on high-speed connectivity but do require the longevity and reliability of LTE networks. It is also backward-compatible with existing 2G networks, ensuring that it can be connected even in remote areas devoid of 3G or 4G network coverage.● The EC21-AU Mini PCIe supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS), and the integrated GNSS greatly simplifies product design, and provides quicker, more accurate and dependable positioning.● A wide range of internet protocols, industry-standard interfaces and functionalities (such as USB serial drivers for Windows 7/8/8.1/10, Linux, Android and eCall) allow the module to serve a wide range of IoT applications including smart metering, wearable devices, tracking and tracing, smart home gateways, fleet management, digital signage, and drones.Key Features● Supports DFOTA● Supports DTMF● Supports MIMO● USB 2.0 high speed interface● Multi-constellation GNSS receiver availableWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
