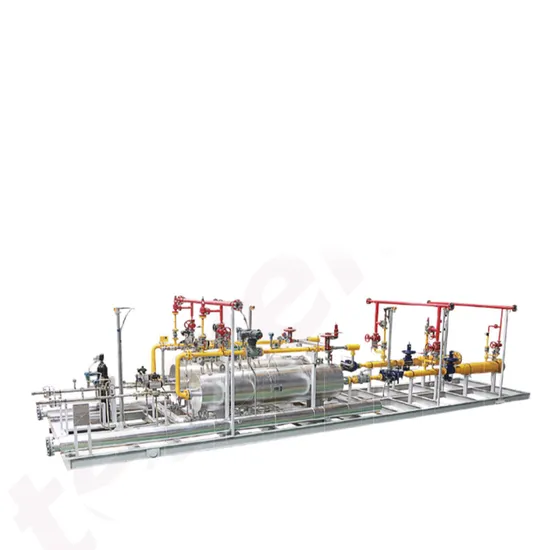

Natural Gas Pressure Regulating Metering Skid

Product Description

Product overview and application
The city gate station is a gas supply equipment which integrates the functions of gas receiving, pre-treatment, pressure regulating and metering when the city gas transmission and distribution system receives natural gas from long-distance pipelines, it can integrate many kinds of function components, such as receiving and sending device, filtering, measuring, gas heating, regulating pressure, deodorizing and SCADA system. The utility model has the advantages of high precision, reasonable structure, complete functions, convenient installation, use and maintenance, etc. . Regional pressure regulating station is the core equipment of city gas transmission and distribution system, its function is to filter, regulate pressure and measure gas to a certain area of civil, industrial, boiler and other users gas supply. The utility model has the advantages of high precision, small occupation area, convenient installation and maintenance, high repeatability, etc. . The above two kinds of equipment usually use skid-mounted structure, and according to user requirements for design and manufacture.
Product Characteristics
1, Customized products to meet the needs of different sizes of urban gas single distribution system gas supply; structure design compact and reasonable, moderate footprint, convenient installation and maintenance
2. Design 3 should meet the EN12186(function requirements of gas pressure regulating station for gas supply system transmission and distribution) and other domestic and foreign standards, specification
3. The products are generally used with one-on-one or multi-way gas supply structure, series and parallel monitoring design, each road is equipped with safety emergency cut-off device, the entrance and exit are provided with safety release, if necessary, set up bypass, safe and reliable
4. The professional designed measures can reduce the overall noise by 30 decibels
5. The equipment has been assembled before the factory, strength, air tightness and other funct
Technical parameters
using medium: natural gas, coal bed methane, coal gas,
design temperature: -20 ~ 60 ° C, the lowest is -40 ° C
design pressure: 10 MPA
regulating precision: the highest AC1
maximum inlet pressure: 10 mpa
minimum outlet pressure: 0.1 mpa
