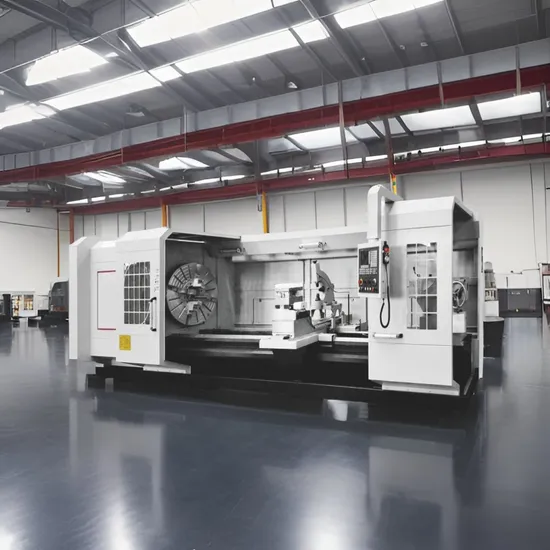

Heavy Duty Flat Bed CNC Metal Lathe Good Way (BL-CKW61125/61140/61160/61180/61200)
| US$108,000.00-163,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
BL-CKW61125/61140/61160/61180/61200
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Guideway Width
1100 mm
Max. Swing Dia. Over Bed
1250/1440/1640/1840/2020 mm
Center Distance
3000~10000 mm
Spindle Bore
100 mm
Transport Package
Plywood Case
Specification
6700-13700*2550*2350
Trademark
BLIN
Origin
Ningbo China
HS Code
8458110090
Production Capacity
480 Uniits/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description
heavy duty flat bed cnc metal lathe good way(BL-CKW61125/61140/61160/61180/61200)- Guideway width 1100mm,spindle bore Φ100mm,heavy-duty type,suitable for heavy cutting - Mono-block bed,high rigidity - Adopt China top quality compound resin sand cast iron,after aging treatment,good precision keeping - Guideway hardened by ultrasonic frequency, good precision keeping, long using lifespan - Guideway stick PTFE,remove creeping,good wearability - Adopt manual 4 class gear spindle, stepless speed in every class
| Item | Specification | Unit | CKW61125 | CKW61140 | CKW61160 | CKW61180 | CKW61200 | ||
| Capacity | Guideway width | mm | 1100 | ||||||
| Max. swing dia. over bed | mm | Φ1250 | Φ1440 | Φ1640 | Φ1840 | Φ2020 | |||
| Max. swing dia. over slide | mm | Φ710 | Φ820 | Φ1020 | Φ1220 | Φ1420 | |||
| Center distance | mm | 3000~10000 | |||||||
| Max. loading capacity | t | 10/20/30 | |||||||
| Spindle | Spindle bore | mm | Φ100 | ||||||
| Spindle bore taper | / | Metric 120 | |||||||
| Spindle speed | rpm | Manual 4 class gears,speed stepless in every class | |||||||
| 10~300 | 10~300 | 10~300 | 10~200 | 10~200 | |||||
| Spindle nose type | / | A2-15 | |||||||
| Chuck size | mm | Manual 4-jaw Φ1250mm | Manual 4-jaw Φ1400mm | ||||||
| Spindle motor | kw | 37 | |||||||
| Feeding axes | X axes travel | mm | 700 | 750 | 830 | 930 | 1020 | ||
| Z axes travel | mm | 2850~9850 | |||||||
| X/Z axes rapid rate | m/min | 4/6 | |||||||
| Tool post | Tool post type | mm | 4 station electric tool post | ||||||
| Toolshank size | mm | 50×50 | |||||||
| Tailstock | Tailstock quill travel | mm | 300 | ||||||
| Tailstock quill dia. | mm | Φ220 | |||||||
| Tailstock quill taper | / | Metric 80 | |||||||
| Overall size | L | mm | 6700~13700 | ||||||
| W×H | mm | 2550×2350 | 2600×2400 | 2700×2560 | 2800×2760 | 2900×2900 | |||
| Weight | N.W. | T | 22.6~28.9 | 23.6~29.9 | 24.6~30.9 | 25.6~31.9 | 26.6~32.9 | ||
Standard configuration: -GSK controller -Manual chuck -4 station tool post -Manual tailstock Optional configuration: -FANUC 0I TF controller -6/8 station tool turret -Hydraulic tailstock Other models choice:
