Automatic Pattern Single Needle Quilter Long Arm Computerized Single Needle Quilting Machine Computer Multi Needle Quilting Machine Sewing Quilt Machine

Automatic Pattern Single Needle Quilter Long Arm Computerized Single Needle Quilting Machine Computer Multi Needle Quilting Machine Sewing Quilt Machine

US$20,000.00
1 Piece
US$19,000.00
2+ Pieces

Basic Info.

Model NO.
SN-64-Y2, SN-96-Y2, SN-128-3B
Number of Head
2 Bar & 3 Bar
Voltage
380V
Type
Computerized Quilting Machine
Name
Computer Quilting Machine
Style
Lock Stitch
Function
Summer Quilt , Blanket ,Sleepbag
Size
64" 96" 128"
Needle Bar
2 Bar & 3 Bar
Shuttle Size
7# & 10#
Motor
Full Servo
Needle Space
1 Inch
Needle Bar Space
3"+1", 3"+1.5", 3"+2", 3"+3"
Experience
Manufacturer Since 2003
Transport Package
Packing by Bubble Film,Loading by One 20FT Contain
Specification
64" 96" 128"
Trademark
Seanoel
Origin
China
Production Capacity
20 Sets Per Month

Product Description

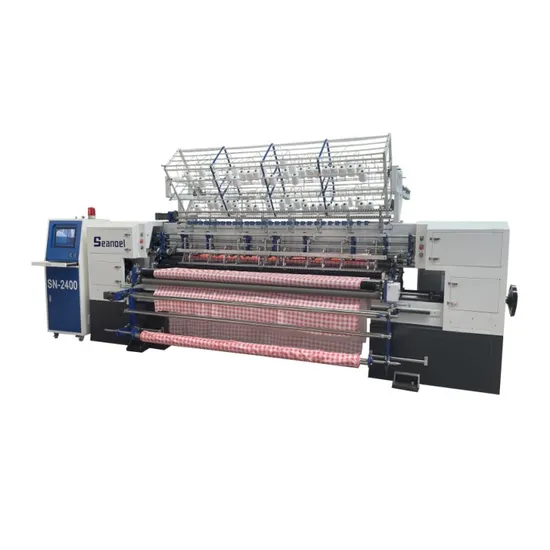

Computer Shuttle Quilting Machine
SN-64-Y2 SN-96-Y2 SN-128-3B
1. It is widely used for quilting high-quality garments, quilt covers,hand bags,gloves,sleeping bags,pajamas,bedspreads,seat covers,plus material and household ornaments.
2. Needle bar and press plate are connected by cam-free double-swinging device, which is with high precision and durable. This structure can avoid lubrication and dirty material effectively.
3. High rigidity machine body and structure can make the machine running faster and more stable.
4. Adopting the new structure of press plate's adjusting makes the machine much simple.
5. Advanced and practical up thread-break detection unit.
6. Computerized automatic needle-lifting speed adjustment.
7. New generation of CNC system, advanced machine structure, high precision quilting, dispense with too much parameter adjustment or pattern modification during quilting.
8. Easy preparation of CAD drawing extremely precise.
9. Able to quilt simple embroidery patterns.
10. Fault detection and indication enabling fast fault correction and return operation.
Model SN-64-Y SN-96-Y SN-128-3B
Dimension(L×W×H) 3600*1550*2300 4700×1550×2300 5560×1550×2300
Quantity of needle bar 2 OR 3 2 OR 3 3
Quilting width 1650mm 2450mm 3250mm
Space between needle rows 3"+1" , 3"+1.51" , 3"+2" , 3"+3"
Space between needles 25.4
X-axis movement displacement 203.2 305 305
Thickness of quilting ≤30mm ≤30mm ≤30mm
Stitch length 2~7
Speed of production 60-130M/H 80-150M/H 80-150M/H
Model of needle 14#-21#
Speed of main shaft 500~1000RPM 500-1000RPM 500-1000RPM
Total power required 4KW 4.5KW 5.5KW
Voltage 380V/50HZ 220V/60HZ
Gross weight 3000kg 4000kg 5000kg

Warranty
1. All parts are guaranteed one year for non-human-made damage2. After one year, all parts was provide without profit3. Before buying, our businessman online 12 hours every working day to answer your questions4. In production,production pictures and videos are available any time5. After buying,our engineer online 10 hours every working day to help you use machine correctly6. We provide details machine installation & user's guide and maintenance manual
Company Profile
FAQ
Q1: Warranty,Quality and ServiceA:We provide one year warranty,within one year,If machine damaged,we provide parts free;And we provide online guidance within 12 hours,lifetime serviceQ2: Experience,Professional and EngineerA:We are a home textile manufacturer with almost 20 years experience,Our engineer online eight hours every day,we will give bestguide before buying and after buyingQ3: Trust and SafetyA:We are a family business group,all of us working in this market and can only working in this field,we must do our best becausethere is no way of escape,no matter when you have troubles,you can find us alwaysQ4: Advantage and Why choose usA:We have are rich experience, professional team, never absent after-sales servicewe helped many many customers in the world,we are growing up together with all of our customers
