Hot Selling Ink Dotting 3D Printing Machine Press Device on Elastic Tapes

Product Description

Product Description

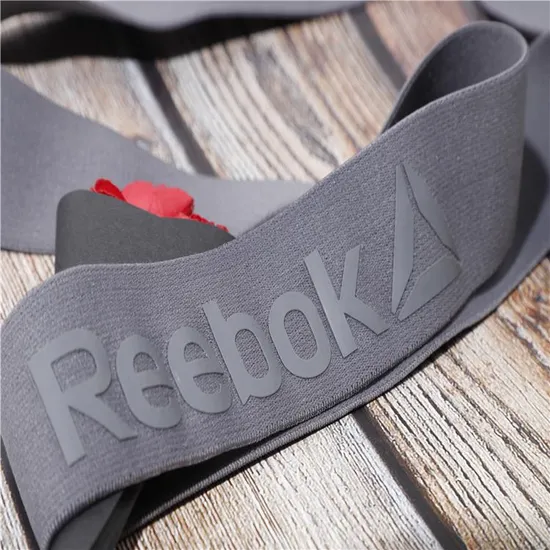

This printing machine for woven tapes and fabric can print up 2-4 colors silicone logo or figures or letters onto on fabric, woven tapes,webbing,belts laces, underwear, mesh and some others tapes. Are mainly used in underwear, woven webbing, hangtag tape and more.
Features

1.Automatic silicone 3D printing machine,2-4color avaiable.
2.the width of tap is between min 3mm to max 260mm.
3.Use electrical photo-cell tracing to positioning, acurate and precise.
4.1-5tapes can be processed at one time.
5.Running speed and oven tempertaure adjustable, to meet different requirement.
Specifictions

	DH-PM01	DH-PM02	DH-PM03
Halftone	2	3	4
Printing color	2	3	4
conveyor belt width	300mm
Air Pressure (kg/cm2)	6kg/cm2
Positioning	electrical photo-cell tracing
Min.tape width	3mm
Max.tape.width	260mm
Max.printing area	L500*W260
Running speed	600-1800time/h	800-2600time/h	1000-3200time/h
Oven temperature	50-200ºC
Measurement	11500*550*1820	15500*5500*1850	19500*550*1850
Weight	1000kg	1500kg	2000kg
Electrical requirement	6-12kw/380v ac	6-24kw/380v ac	8-24kw/380v ac
