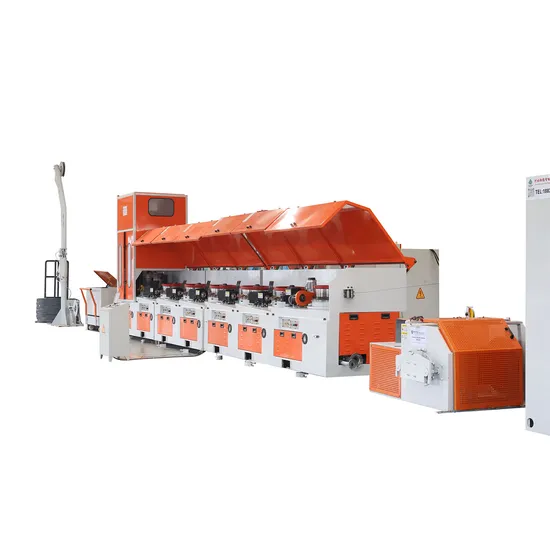

Customized Straight Line Wire Drawing Machine for Stainless, Carbon, and Copper

Product Description

Product Description
High carbon steel wire drawing machine 1.Production process : High carbon steel wire coil→High pay-off frame→Mechanical derusting→Belt polishing machine→Boron coating drying treatment→straight line wire drawing machine→Trunk take-up machine.
(Note:If you use pickling wire rod,then no need the three machines in gray colors.)
2.Main features:
High carbon steel wire drawing machine are that the drum adopts narrow slot water cooling and the drawing die adopts direct water cooling; Good cooling effect; Gear box transmission is adopted, with high transmission efficiency and low noise; Fully enclosed protection system is adopted, with good safety; Air tension tuning is adopted to ensure stable drawing.
3.Main functions:
(1)Accurate meter counting with an error of 0.1%;
(2)Fixed length automatic deceleration and stop;
(3)Disconnection detection and automatic shutdown;
(4)Positive and negative inching and left-right linkage of any drum;
(5)Display of various fault information and processing information;
(6)Various motion information monitoring.

Specification

Model	Unit	LZ400	LZ560	LZ600	LZ800
Capstan diameter	mm	400	560	600	800
Drawing dies	Times	9	9	9	9
Inlet wire diameter	mm	Φ2.5-4.5	Φ5.5-6.5	Φ6.5-8.0	Φ8.0-10
Outlet wire diameter	mm	Φ0.8-1.4	Φ1.6-2.0	Φ2.0-3.0	Φ2.8-3.5
Drawing speed	m/s	10-16	8-12	6-12	6-10
Total reduction rate	%	90.32	90.53	90.53	90.53
Motor power	Kw	11-15	30-37	30-37	37-75

Detailed Photos
Wire Pay off system
Wire pay off system usually is pneumatic lifting pulley, convenient wire threading.
Customers can choose hydraulic wire pay off systems or ordinary wire pay off systems.

Wire rod sand belt polishing machine
The steel wire is polished with high-speed abrasive belt to make the derusting effect better. It is conducive to boron coating and drawing process. It is suitable for high quality drawing process.

Online boron coating and drying machine
Borax film can be attached to the surface of high carbon steel wire after boron coating and drying treatment, which is conducive to the adhesion of wire drawing powder and improve the drawing effect of steel wire.

Control cabinet
High degree of mechanical automation, all kinds of fault information and processing information are displayed on the screen.

Capstan
Capstan uses special materials to spray tungsten carbide on the surface and increase the height and thickness.
The drum base adopts narrow slot design to effectively prevent rust and impurities from entering the drum.
Rotary die box
The whole set of machinery uses a rotating die box, which can make it easier for the wire drawing powder to adhere to the surface of the wire rod. Improve the quality of wire rod finished products.

Gear box
The mechanical transmission system adopts the direct connection between the gearbox and the motor, which can greatly reduce the noise, improve the reliability of operation and increase the transmission power. Save electricity.

Inverter
The machine is equipped with frequency converter, and the energy-saving effect is very obvious. It is very convenient to adjust the speed.
The frequency converter also has many protection functions, such as overcurrent, overvoltage, overload protection and so on.

Protection cover
The machine adopts a fully enclosed protection system, which has good safety performance and can reduce the generation of dust, thus reducing the damage to the electrical and prolonging the mechanical life.

Wire take up system
The take-up system is divided into trunk take-up machine and spool take-up machine, Customers can choose according to their needs.Wire take up machine uses adjustable speed motor, in order to be able to automatically cycloid, so that the operation becomes more convenient.

More Popular Products


Packaging & Shipping
Package.The main machinery is packed with plastic film and fixed in the container with steel wire. Small mechanical parts are packed in wooden cases.
Shipment.We can book containers for customers according to the mechanical size. If we need LCL, we can arrange to pack and send them to the designated place.
Customer and Market
Friends from all over the world. All key spare parts of the company are independently produced by us to control their processing accuracy and quality, thereby extending the service life of the machinery.The company has taken the lead in passing the ISO9001:2008 quality system certification and the EU CE product safety certification in the same industry, providing reliable assurance for excellent product quality.
The company's machinery and equipment sell well in China, and are exported more than 100 countries and regions such as Romania, Lithuania, Turkey, Poland, Belarus, Ukraine, Russia, Kazakhstan, Saudi Arabia, Egypt, Algeria, South Africa,Vietnam, Thailand, India, Pakistan, Philippines, Indonesia, Australia, Mexico, Colombia, Argentina, Bolivia, Brazil, etc.
After more than ten years of development, the company has grown into one of the leading enterprises in the industry. We adhere to the tenet of "customer first, technology leading". In the future, the company will comprehensively promote industrial development and upgrading, and build the world's leading steel processing equipment. Company Profile
Factory History
Hebei Songwei Intelligent Equipment Co., Ltd. was established in 2002 and is located in Hebei Province, China. It is a high-tech enterprise specializing in the design and manufacturing of metal wire drawing equipment, galvanizing equipment, and their auxiliary equipment. It enjoys a high reputation in the metal wire drawing and processing industry.
Factory Strength
The company currently has 3 production and processing factories, with 8 workshops including metal cutting, precision machining, equipment assembly, and electrical assembly, with a total area of approximately 30000 square meters. The company has advanced processing equipment such as plasma welding, shearing machines, and CNC lathes.
Development Goals
Hebei Songwei Intelligent Equipment Co., Ltd. is committed to international development and participates in at least four international exhibitions each year, taking this opportunity to showcase the company's advanced technology and products to the world and deepen exchanges and cooperation with global partners. FAQ
Q: Are you a manufacturer or a trading company?
A: We are manufacturers. We have a group of high-quality engineers and experts who have been engaged in the field of wire processing equipment.
Q: What are your company's main products?
A: We specialize in the research and manufacturing of machinery such as wire drawing machines, galvanizing lines, annealing industrial furnaces, and nail making machines.
Q: What can we provide to customers?
A: Our professional production and technical personnel can train our customers' employees to ensure their smooth production. And we will provide after-sales service to our customers.
Q: How long is the warranty period for the machine?
A: Warranty period of one year (from the date of completion of mechanical debugging in the buyer's factory).
Q:What machinery does your company mainly produce?
A:Our main products include straight line wire drawing machine, pulley wire drawing machine, water tank wire drawing machine, galvanized wire production lines, annealing furnaces, Welding wire copper plating production line, Welding rod production line, nail making and coils nails machines, etc.
Q: Why did I choose your company?
A: We have over 10 years of professional experience in the production of cable machinery, High security products.
We have a team of experienced technical workers and engineers.
We can support overseas training of engineers.
We can customize designs and accept customer sample designs.
We can provide after-sales service to customers.
Note:
Please provide following information if you want the directly quotation:
1. Wire Material:
2. Inlet Wire Diameter range:
3. Outlet wire Diameter range:
4. Where and what does the wire use for:
