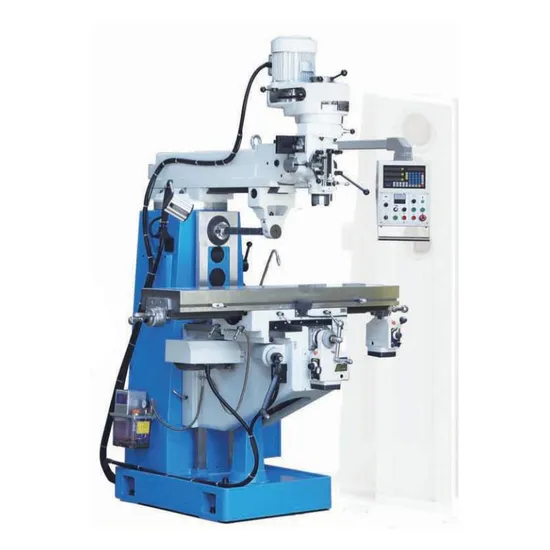

High Quality Knee Type CNC Milling Machine with 12 Shifts Speed
| US$50,000.00-100,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
2
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
GS
Condition
New
Transport Package
Woodencase
Origin
China
Production Capacity
1000pieces/Year
Product Description
Product Description12 shifts speed (50~1200)can be realized by gearbox inside of machine body and supply rich selection according to various processing.
All gears are hardened and precision ground, it is important for smoothly working with high precision and low noise, with consideration of long working life
New designed machine body with wider size of base and column,this will increase confirmed cost of the machine, but we think thequality should be first priority, only strong structure could ensurestrong stability.
Product Parameters
| Item | unit | X6325W(X6325WT) | X6330W(X6330WT) | ||
| worktable | |||||
| table size | mm | 254×1270 | 254×1370 | 305×1370 | 305×1500 |
| table longitudinal travel | mm | 820 | 920 | 880 | 1000 |
| table cross travel | mm | 420(WT:390) | 420(WT:390) | ||
| Knee vertical travel | mm | 500(WT460) | 500(WT460) | ||
| Knee rapid speed | mm/min | 345(optional) | 345 | ||
| vertical spindle | |||||
| motor power | HP | standard 3HP,optional 5HP | |||
| speed | r/min | standard 16 steps,50hz :65~4500, 60hz:80~5440 Optional: variable speed | |||
| taper | R8, optional ISO 30/40 | ||||
| quill travel | mm | 127 | |||
| quill feed rate | mm/rev | 0.04/0.08/0.15 | |||
| head rotating | R/L:90 up/down:45 | R/L:90; up/down:45 | |||
| distance frome spindle end to table | mm | 0~535 (WT:30~490) | 0~535 (WT:30~490) | ||
| horizontal spindle | |||||
| motor power | HP | 5 | |||
| speed | r/min | 12 Shifts:40/57177/110/150/215/240/340/460/650/900/1280 | |||
| taper | ISO40 | ||||
| distance fromspindle center to table | mm | -50~410 (WT:-135~355) | |||
| distance frome spindle center to ram way | mm | 185 | |||
| ram cross move distance | mm | 640 | 500 | ||
| ram rotating | 180 | 180 | |||
| worktable rotating | -/(wt±35) | -/(wt:±35) | |||
| netweight | kg | 1550 | 1590 | 1640 | 1680 |
| package size(L×W×H) | cm | 1set/pallet:160×170×220 2set/pallet:170×220×220 | 1set/pallet:160×170×220 2set/pallet: 170×220×220 | ||
