Basic Info.
Process Usage
Metal-Forming CNC Machine Tools
Numerical Control
CNC/MNC
Processing Precision
0.07~0.08(mm)
Performance Classification
High-End CNC Machine Tools
Transport Package
Wooden Case Packing
Production Capacity
100 Sets/Month
Product Description

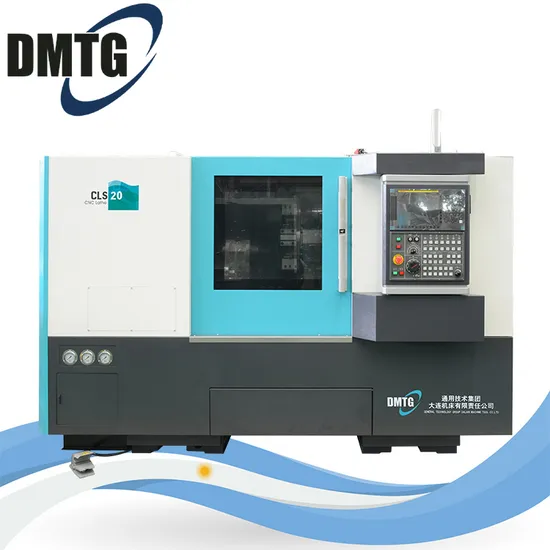

DMTG CLS20 Dalian CNC Lathe CT40 Machinery CNC Lathe Machine
2 Axis Torno CNC Turning Machine Lathe
| CAPACITY | Swing over bed | mm | 440 |
| Max. turning length | mm | 450 |
| Max. turning diameter ( shaft / disc ) | mm | 260/300 |
| Guideway type | | Linear guideway |
| SPINDLE | Chuck size | Inch | 8 |
| Spindle nose | | ISOA2-6 |
| Spindle bore | mm | 62 |
| Spindle speed | rpm | 4500 |
| Spindle motor power | Kw | 11/15 |
| Spindle torque | Nm | 93/127 |
| Max bar diameter | mm | 51 |
| TRAVEL | X-axis travel | mm | 160 |
| Z-axis travel | mm | 500 |
| X-axis rapid traverse | m/min | 20 |
| Z-axis rapid traverse | m/min | 24 |
| TOOL POST | Turret type and tool number | | Hydraulic 8-station turret |
| Tool shank size | mm | 25x25 |
| Indexing time(adjacent/farthest) | s | 0.45/1.2 |
| TAILSTOCK | Diameter of tailstock quill | mm | 80 |
| Tailstock quill travel | mm | 130 |
