Basic Info.
Type
Basic Diesel Generator
Installation Method
Portable
Cooling Method
Air Cooled
Conditions of Use
Land Use
Usage
Common Units, Standby Unit, Emergency Crew
Landuse Type of Unit
Ordinary
Excitation Mode
AC Rotating Exciter
Socket Type
Customization
Transport Package
Carton Packing
Specification
945*555*700mm
Packaging & Delivery
Package Size
1045.00cm * 655.00cm * 800.00cm
Package Gross Weight
180.000kg
Product Description
1.Product Specification:
Model No | RJ9700TL |
Frequency(Hz) | 50/60 |
Rated Output(KW) | 6.5/6.8 |
Max Output(KW) | 7.0/7.7 |
Rated Voltage(V) | 220V or as requested |
Rated Currency(A) | 29.5/30.9 |
Rated rotation speed(r/min) | 3000/3600rpm |
Power Factor(cos φ) | 1 |
Pole number | 2 |
Insulation Grade | F |
Excitation mode | Self-exciation&constant voltage |
Receptacle | Two receptacles |
Connection pole | Without |
DC 12V output | Connection pole output |
Package size(mm) | 945X555X700 |
Dry Weight(kg) | 160 |
Working assorting weight | 170 |
Engine Model | RJ195F |
Type | Single Cyliner,vertical,four stroke,direct injection,air cooled |
BoreXStroke(mm) | 95*75 |
Displacement(ml) | 532 |
Compression Ratio | 19:1 |
Rated Power(KW/rpm) | 8.1/3000 8.7/3600 |
Rated Speed | 3000/3600 |
Lubricating System | Pressure Splashed |
Starting System | Electric Start |
Fuel type | 0#(summer)--10#(winter)-35#(chillness) diesel |
Lube oil capacity(L) | 1.65 |
Starting motor capacity( V. KW) | 12V 1.2KW |
Charging generator capacity | 12V 8.3A |
Battery capacity (V. Ah) | 12V 30Ah |
Fuel consumption(g.kw*h) | ≤280 |
Fuel tank capacity(L) | 15 |
Continous running time | 5 |

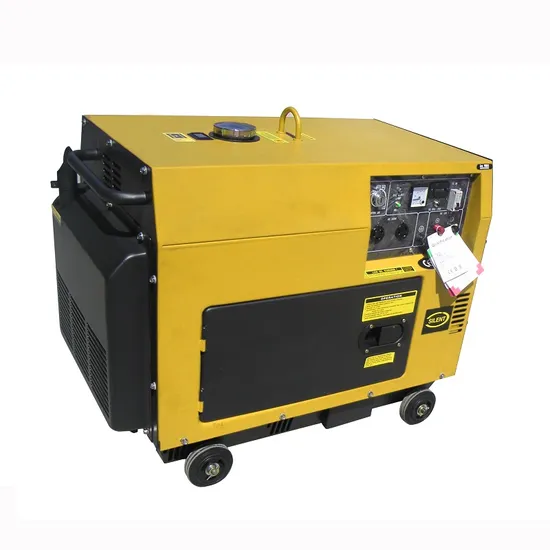

2.Detailed Images:
3.Product Features:
-----Strong Power&large torque
-----Stable power output
-----Powered by high-performance diesel engines
-----Portable and compact design
-----Special configurations design
-----Low oil level alarming system
-----New AVR(Automatic Voltage Regular)
-----Short circuits protection
4.Application of diesel generators:
-----Outdoor electricity supply
-----Light Tower
-----Water mist cannon/dust suppresssion sprayer
-----Electricity supply for vehicle
-----Unmanned charging piple,
-----Construction site electricity supply
-----Boat or private yachts electricity supply
5. Certifications:
6.Company Information
7.Packing&Shipping
8. FAQ
1. Q: What is the minimum order quantity?
A: Our MOQ is 50 sets for machines,500sets for spare parts.
2. Q: What payment way do you accept?
A: We accept T/T, LC,Western Union,Money Gram,Paypal etc
3. Q: What are your payment terms?
A: In principle T/T 30% as deposit, 70% as BL copy.
4. Q: Do you have samples?
A: Sample order is acceptable, but due to the high value of the engine, we cannot accept free of charge in principle.
5. Q: What is your delivery time?
A: Our delivery time is 25-30 days after we receive deposit or L/C.
