65 Inch AG Glass Double System Smart Board Interactive Digital Whiteboard for Schools
| US$1,000.00-9,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
L65A1S6-IH
Using Type
Movable With Rack
Material
Iron
Sides
Single Sided
Folded
Unfolded
Specification
iron
Trademark
asianda /oem /odm
Origin
Shenzhen, Guangdong, China
Production Capacity
50000
Product Description
65 Inch Smart Interactive Whiteboard touch screeb whiteboard for education1,Product Description
This machine is perfectly combined with the current cutting-edge operating system Windows7 / 8 to achieve multi-touch, which can instinctively and naturally zoom, rotate and annotate pictures, videos, web pages, documents, etc., making the touch more brisk, Smooth, elevating the touch experience to a whole new level, fully reflecting the unique charm of human-computer interaction.

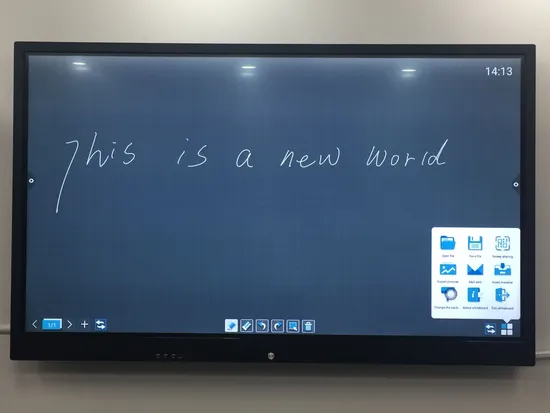

2,Overall Appearance
3,Technical Parameters
| Product Series | Product Series | A1 serie |
| Model | L65A1S6-IH | |
| Display area (mm) | 1430.5*805.5 | |
| Panel | Screen type | WLED Backlight |
| Screen supplier | LGD/SDC/BOE/AUO | |
| Maximum resolution | 3840*2160 | |
| Refresh rate | 60HZ | |
| Brightness | 450nits | |
| Contrast Ratio | 4000:1 | |
| Viewing angle | 178°/ 178° | |
| Working life | >50000 hours | |
| Touch system | Touch principle | IR touch |
| Response time | ≤8ms | |
| Recognition points | 10points touch | |
| Touch power supply | USB | |
| Touch resolution | 32768 x 32768 | |
| Drive system | chip | MSD6A828EVC |
| CPU | Cortex A53*4 1.4GHz | |
| GPU | Mali450MP4 (4+2) 600MHz | |
| RAM | 2G DDR3 | |
| Flash | 32GB | |
| SD card | Support MAX 128GB SD card | |
| system | Android 5.0 | |
| I / O interface | RS232 | 1 |
| YPBPR IN | 1 | |
| HDMI IN | 2 | |
| RJ45 | 2 | |
| Touch usb | 1 | |
| VGA IN | 1 | |
| VGA AUDIO IN | 1 | |
| SD card | 1 | |
| MIC IN | 1 | |
| USB 3.0 | 2 | |
| AV IN | 1 | |
| RF-IN | 1 | |
| Output Interface | SPDIF OUT | 1 |
| EARPHONE | 1 | |
| AV OUT | 1 | |
| VGA OUT | 1 | |
| Front port | USB Touch | 1 |
| USB 2.0 | 2 | |
| HDMI | 1 | |
| PC main features | Chip set | Intel I3/I5/I7(Optional) |
| System memory | 4GB(Max 16GB) | |
| Graphics card | Integrated HD graphics | |
| Hard disk HDD | 120G SSD | |
| Network card type | 1GB Ethernet Gigabit LAN(RTL8111E) | |
| Wireless network card | Support wireless network | |
| Sound card | Integrated 6-channel audio ALC662-VDO sound card chip | |
| PC interface | HDMI interface | *1 |
| VGA interface | *1 | |
| USB interface | *4 (2 USB 2.0 /2 USB 3.0) | |
| RJ45 NIC interface | *1 | |
| AUDIO-OUT interface | *1 | |
| MIC-IN interface | *1 | |
| Operating system | WIN7 | |
| Other functions | Audio and video formats | 3GP, 3G2, AVI, FLV, F4V, OGG, MP4, MOV, TS, M2TS, M2T, MTS, TP, TRP, M2P, MKV, |
| VOB, DAT, M4V, ASF, WEBM, 3GP, MP3, WAV, WMA, MPEG, PCM | ||
| Video encoding protocol | H264, H265, MPEG2, VC1, VP6, VP8, VP9, MVC,DIVX, MJPEG, AVS, AVS+ | |
| Audio decoding protocol | WMA, MP3, WAV, AAC, AC3,EAC3, Vorbis, FLAC, APE, TrueHD, DRA,DTS,DTSHD | |
| Subtitles and subtitle formats | srt, sub, smi, sami, ssa, aas, lrc, idx+sub, PGS, MKV Internal subtitle, TS Internal | |
| subtitle(dvb subtitle), VOBSub(idx+sub) | ||
| Writing fluently | Smooth writing experience, touch delay <8MS | |
| Touch menu | (Using gestures to call the on-screen touch menu to achieve menus, signal source switching, sound, brightness, and control of all TV functions) | |
| Intelligent signal switching | The device will automatically identify and switch to the corresponding video, audio, and touch simultaneously to the corresponding signal source channel | |
| Temperature detection function | Display the internal temperature of the machine on the menu interface of the all-in-one. When the internal failure of the machine occurs, the temperature will automatically shut down. | |
| Gesture wipe function | Wipe text and patterns on the screen with gestures | |
| Two-way control function | Touch the screen to control the computer, convenient and fast | |
| Wireless screen transfer function | No need to plug in to cast content from your computer to the screen (optional) | |
| Zoom in, zoom out, drag | Adopt multi-touch technology, change the size of the picture arbitrarily, move the position of the picture arbitrarily, etc. | |
| Structure size | Without packaging | 1520.5×942.5×106.2 |
| With packaging | 1730×270×1075 | |
| Total Weight | net weight | 68.3Kg |
| Gross weight | 76.5Kg | |
| Audio | Sound power | (8Ω 15W)*2,Stereo surround sound |
| Power | Power consumption | ≤250W |
| Standby power | <1W | |
| Input power | 100-240VAC 50/60HZ | |
| Working environment | Operating temperature | -10ºC-50ºC |
| Working humidity | 10%-90% | |
| Storage temperature | -20ºC-60ºC | |
| Storage humidity | 10%-90% | |
| Other | Packing | 20 mm thick impact-resistant honeycomb carton |
| Tempered glass | 4mm fully tempered glass, anti-scratch, anti-impact, explosion-proof, | |
| Glare | ||
| Relevant attachments | Power cord, remote control, battery, whiteboard pen, certificate of conformity |
Other size options :75/85/100inch
4,Product Six Sides
