N-High Speed Pipe Cutting and Beveling Machine

Product Description

Pipe & Flange | Cutting | Beveling | Facing | Drilling | Boring
N-High Speed Pipe Cutting and Beveling Machine(CNC)
OVERVIEW

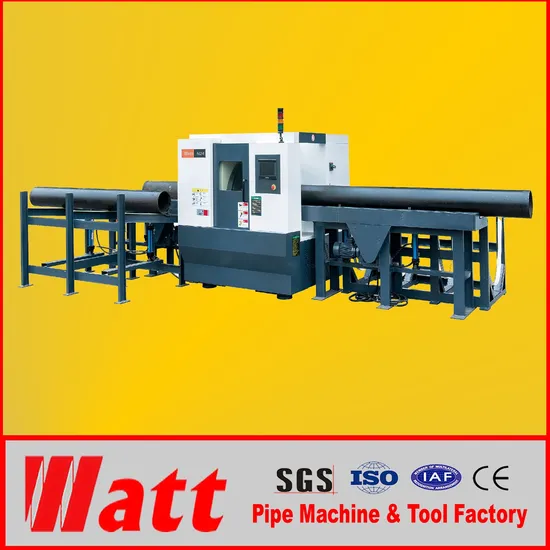

WATT N series High speed pipe cutting and beveling machine is a kind of efficient pipe cutting and beveling prefabrication CNC machine.designed to cut, bevel, single point on the pipe with high speed. considerable heavy wall and for any type of material. Adopt servo motor drive, with AOTAI CNC system, double hydraulic clamping system, self-centering system. and pipe length setting system and pipe conveying system are optional. This series machine advantage with high speed, high precision, high quality of cutting, easy to control. it is the key equipment for all kinds of pipe prefabrication. suitable for cutting and processing pipe of oil, chemical, natural gas, nuclear power and other industry.
FEATURES
1,4 models are available in pipe OD:50-914mm
2,Cold cutting, don't influence the pipe's material
3,High speed cutting, feeding control by program
4,Machine up/down design, and control by program
5,Exclusive CNC system, make everything become easier.
6,Built-in water cooling systems, increasing the life of machine and tools.
7,Both front and back hydraulic clamping system, self-centering, precision solid.
8,Varity of beveling shape: "U","V","J", double "V", compound bevels.
9,Cutting and beveling,and can be used for cutting, beveling, double beveling.
10,Independent servo motor driven, can realize feed and retract with correlation, differential, independent.
CAPABILTY
1,Pipe cut off
2,Pipe end beveling
3,Pipe facing
4,Cutting and beveling
5,Compound beveling
6,Counterboring
7,Grooving

BEVELING SHAPE

*other beveling shape, angle and pipe material, please declare before order

SPECIFICATION

Model	Working Range OD(mm)	Rated power (KW)	Rotating (rpm)	Movements itinerary (mm)	Feed stroke (mm)
N12	Ф50-325	10.45	0-50	200	100
N18	Ф130-450	12.45	0-42	200	100
N24	Ф300-610	17	0-35	200	100
N35	Ф610-914	20	0-25	200	100

Above parameters just for reference only, not acceptance criteria
Power requirement:380V,50-60Hz,3P
Up/down travel:200mm
Feeding travel:100mm
pipe length limit:300mm
Tool post quantity.:2 or 4
Angle deviation:±0.5
Vertical deviation:±0.5mm @300mm pipe OD


TOOLING
Insert Type
Tool holder:40Cr
Insert:CSS or Carbide
kinds:Cut off,beveling,Double beveling,Compound beveling
Angle:0°,30°,37.5°,double 30°/37.5°,37.5°+10°


OPTION PIPE CONVEYER
According to the need to customize.
Optional pipe conveyer and automatic length setting systems, be formulated with highly efficient logistics system, and form
pipe cutting and beveling prefabricated production line
*Customizable size and option the automatic or manual feeding.

Input pipe conveyer	Output pipe conveyer
Length setting system	Exchange system
