2/2 Way Klpt Electronic Drain 1/2 Inch Water Valve with Timer

Product Description

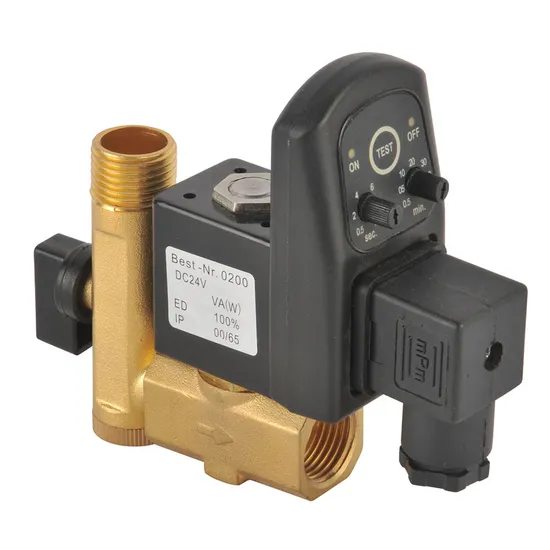

2/2 Way KLPT Electronic Drain 1/2 inch Water Valve with Timer
KLPT general electron drain valve match analogous circuit solid state electron timer with the solenoid valve to realize discharging the condensed water of compressed pneumatic system at fixed time automatically.KLPT electron drain valve widely be applied in compressed pneumatic system parts like filter,separator,dryer machine ,gas tank,water drop foot and so on.Discharge time and interval time can be carried on adjustment according to different requirements.
1.Pressure 16Bar,40Bar,80Bar.Many kinds of voltages and connections to be chose.
2.Entire stainless steel valve,explosion-proof valve to be chose.
3.CE authentication,protection rank IP65,insulation grade H level.
4. 5.0mm large latus rectum direct-acting valve,flourine rubber seal.
5.Match ball valve filter, fission with drain valve, assumed L structure.
6.External dimensions:112x44x90mm,weight66g.
7.Interval Time(OFF):0.5 to 45 minutes,adjustable.
8.Discharge Time(ON):0.5 to 10 seconds,adjustable.
9.Supply Voltage:24~240V AC/DC 50/60Hz(380VAC can be offered) / 12~380V AC/DC 50/60Hz.

Model	Valve Seals	Pressure Difference	Operating Temp.(Celsius)
KLPT-A-16	FPM(Viton)Seals Forged Brass,4.0mm orifice	0~1.6MPa	2~55
KLPT-B-16

Delivery:
Air, Sea, express
Payment:
T/T, Western Union, Paypal, L/C
Quality control:
100% quality test before packing
Packing:
Cartons, pallets
Ningbo Kailing Pneumatic Co., Ltd.
(formerly named Fenghua Kailing Pneumatic Co.,ltd.) is a leading Chinese company specializing in the
manufacture of solenoid valves and pneumatic components. We are a key member China of Pneumatic
Association, and is awarded AAA Credit Grade by Bank of China.
High quality of the raw materials, the precision of the parts, the hard tests during and at the end of
production are a warranty of reliability and features. Our real strength is to develop customised products
to solve any requirement of utilisation. The production runs conforming to the rigorous ISO 9001/2000
requirements .The product range consists of solenoid valves, process valves,Air source treatment units
etc ,which are found in a variety of industrial applications such as machinery, metallurgy, food, textile and

waste treatment.
