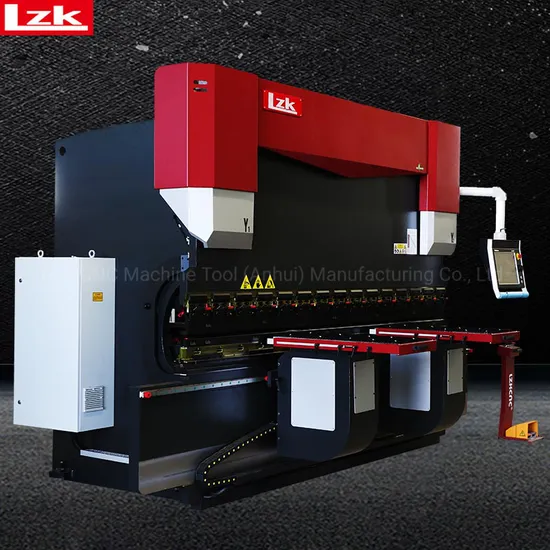

Lzk CNC Sheet Metal Folder with Automatic Front Support System
Basic Info.
Model NO.
HPB 110T3200
Warranty
2-year
Condition
New
Certification
ISO 9001:2000, CE
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Press Brake
CNC System
Delem Da66t
Axes
Y1, Y2, R and Automatic Crowning
Max Bending Length
3200mm
Max Bending Thickness
4mm
Weight
7600kg
Backgauge
600mm Distance, Ball Screw and Linear Guide Rail
Main Motor
Servo Motor
Main Motor Power
7.5kw
Hydraulic System
Rexroth
Servo Drive
Japan Yaskawa
Transport Package
20gp
Specification
3800× 1750× 2580mm
Trademark
LZK
Origin
Maanshan, Anhui Province, China
HS Code
8462219000
Production Capacity
100 Sets/Month
Product Description
LZK CNC sheet metal folder with automatic front support system Product Description| The press brake frame is made of steel structure, left and right vertical plate, worktable and pressure plate are welded into a whole structure. After welding, the internal stress is eliminated by tempering, so the whole steel is good and the stability is high. Latest high-frequency responding hydraulic control technology, faster, more efficient and accurate. Press brakes/bending machines are mainly used in steel companies and construction industries. |
Product Parameters
| No. | ITEMS | UNIT | PARAMETERS |
| 1 | BENDING PRESSURE | KN | 1100 |
| 2 | MAX BENDING WIDTH | MM | 3200 |
| 3 | SIDE FRAME DISTANCE | MM | 2600 |
| 4 | MAX OPENDING HEIGHT | MM | 480 |
| 5 | THROAT DEPTH | MM | 400 |
| 6 | SLIDE STROKE | MM | 200 |
| 7 | MAIN MOTOR POWER | KW | 7.5 |
| 8 | SIZE | MM | 3850X1850X2600 |
| 9 | WEIGHT | KG | 8000 |
| 10 | MORE INFORMATION | https://shearing-machine.en.made-in-china.com/product-list-1.html | |
Company Profile
| LZK CNC Machine Tool(Anhui) Manufacturing Co.,Ltd (LZK) today is placed as a professional leading manufacturer and global supplier of sheet metal working machinery. The company was founded in Oct. 1990, starting manufacturing from 1988, it is a high technique corporation and locates in National spark technology compact district area--Bowang industry area, half an hour driving to Nanjing Lukou International Airport and one hour driving to Nanjing South Railway Station.Our company 's registered capital is around USD 500,000.00, occupy 700,000.00 square meters with a production workshop of 40,000.00 square meters. We have highly trained and qualified machine operators and assembly technicians supported LZK products. Our machines are with Chinese AAA level good standardization and accredited for the ISO 9001:2008. CE Certification is optional. In the past years LZK has progressed to become a major exporter of sheet metal machinery to the world markets with customers located in different countries. LZK currently has representative offices in more than 60 countries and regions through designated distributors. Here, with its long and strong engineering experience, LZK hopes to become a quality-conscious, professional mechanical manufacturing company that serves the industry. Customer visited us from all over the world for inspection and cooperation. Cusotmer in use of our machine for making their products. |
