Hardcover Binding Machine Semi Auto Case Making Machine

Product Description

Hardcover binding machine is used to make perfect book covers, cover of notebook, calendars, hanging calendars, files etc.

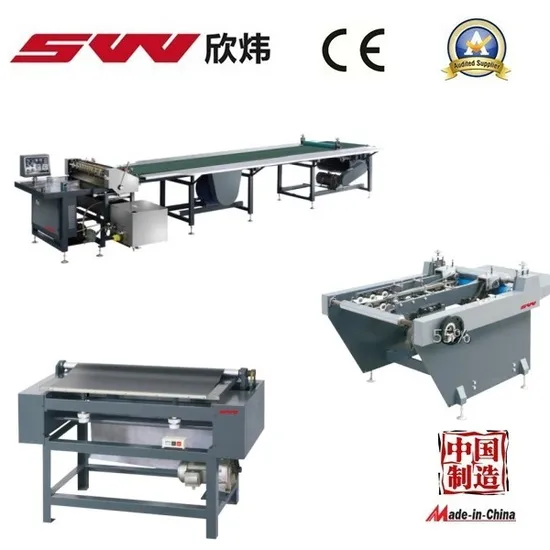

JSJ-600C hardcover binding machine is combind with 3 machine
FSJ-650A Feeder paper feeding gluing machine
Description:
Automatic sheet-fed front edge suction for various sheet sizes.
2. Adjustable rollers apply smooth glue coating on the sheet surface.
3. The circulating glue system with temperature controller assures the adequate glue consistency.
4. Conveyor equipped with air-suction system to forward sheet flat and stably.
5. With ball bearing design of feed table, the sheets are conveyed straight-through by pressure system.
FM-600C Side wrapping machine
This machine can be used to mount and mold the cover of hardcover, file and album.
1. Adopted imported folding belt for folding, featuring in good result in folding.
2. Adopted rubber cylinder smashing, as a result the finished products are flat without bubbles.
3. The machine is characterized by convenient adjustment and simple operation.
DB-800 Single side wrapping machine
1. This machine is used for hardcover. The paper edges are folded tightly with paper board by the drum.
2. The machine is featured by simple and convenient operation and low price attracting customers.

Model	SSJ-650C	SSJ-750C	SSJ-850C
Sheet thickness	80-200g	80-200g	80-200g
Sheet cover width	600MM	700MM	800MM
Sheet cover length	2000MM	2000MM	2000MM
Production speed	0-40unis/min	0-40unis/min	0-40unis/min
Power	8KW/380V	8KW/380V	8KW/380V
Molding Size	5500×1350×1250	5500×1450×1250	5500×1450×1250
Weight of Machine	600kg	750kg	800kg
