High-Security Industrial PC Windows 7 I5-5200u Micro PC with 4G WiFi Canbus
| US$560.00-780.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SM707
CPU Type
Intel Core i5
Hard Disk Rack Type
Board Type
Operating Temperature
-20℃ to 60℃
RAM
8GB
Screen Size
None
Storage Capacity
128GB SSD
System Expansion Slot
Mini PCIe
Touch Screen
None
Type
IPC
Warranty
1 Years Warranty
Certificate
CE, FCC, RoHS
Transport Package
Carton
Specification
34x30x31cm/6KG
Trademark
Sihovision
Origin
China
HS Code
8471414000
Production Capacity
5000piece/Month
Product Description
High-Security Industrial PC Windows 7 I5-5200U Micro PC with 4G WiFi CANBUSMain Products
Feedback
Product Description
Outstanding Features:
Robust all-aluminum alloy structure, advanced fanless design
Powered by Intel Core I5-5200U 2.20GHz
Supports DDR3, up to a maximum of 16GB
Equipped with 1x MSATA and 1x SATA
Fully compatible with WIFI/3G/4G modules
Supports DC 9~36V wide voltage input with reverse polarity protection
Operates reliably in temperatures ranging from -20 to 70ºC
| PC | |
| CPU | Intel®Core I5-5200U CPU 2.20GHz, Fanless |
| Memory | 8GB DDR3 |
| Storage | 128GB SSD |
| Graphics | Intel HD Graphics 5500 |
| Audio | High-fidelity audioDevice Intel(R) Monitor Audio |
| Network | 2*Intel Ethernet controller I225 |
| Wireless | WIFI, 4G TD-LTE |
| BIOS | AMI EFI BIOS |
| WDT | Support hardware reset (256 level, 0-255 sec) |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| Other | Power-on, timed power-on, network wake-up, PXE boot, watchdog (level 0 to 255) |
| I/O | |

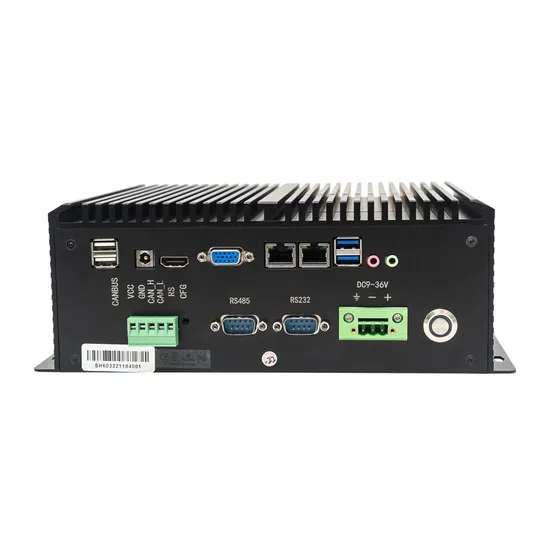

| I/O | 2*USB3.0, 2*USB2.0 2*RJ45 1*Line-out 1*MIC 1*VGA 1*HDMI 1*3-pins terminal block connector(9-36V) 1*COM RS232, 1*COM RS485 1*CANBUS |
| Power Supply | |
| Working voltage | DC 9~36V |
| Power consumption | 30W |
| Power adapter | AC 100 ~ 240V input and DC +12V@5A MAX output, 60W |
| Enclosure | |
| Material | Aluminum alloy shell + galvanized cold-rolled plate baffle |
| Finish | Aluminum alloy shell: sandblasted oxidation, anti-UV and anti-discoloration treatment Front and rear baffles: electrostatic powder spraying |
| Color | Blue aluminum alloy shell + white bezel |
| Mounting | Wall mount + Rail bracket installation |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | Up to 90% at all relevant temperatures |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Product weight | Net weight 4.3kg Gross weight 5.5kg |
| Packing info | 1pcs/ctn 34×30×31cm 6kg |
| Accessories | Power cord, power adapter, rail bracket, mounting edge strip, mounting screws, antenna |
| Other | |
| Warranty | 1 years warranty |
| Certificates | CE, FCC, RoHS |
