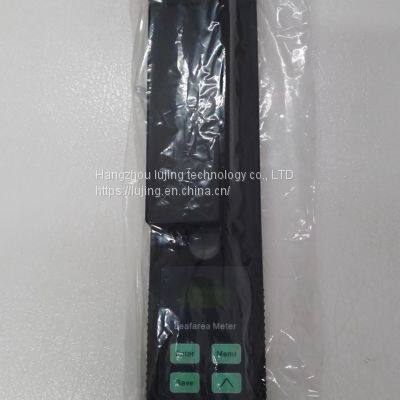

leaf area meter YMJ-A

Product Description

Product Description
"LAM live leaf area meter" series is hangzhou tree state instrument co., LTD., research and development of independent innovation products. Is a kind of easy to use, can work in the field of portable instruments. It can be accurate, fast, and no damage to measure leaf area and the related parameters of the blade, can also be used for picking plant leaves and other sheet object area measurement. Widely used in agriculture, meteorology, forestry and other parts.
Instrument can directly measure the leaf length, width and area, and integrate the GPS positioning system, increased the RS232 interface, can be measured data and positioning information into the computer at the same time, for researchers to further processing of data.
Living leaf area meter/leaf area meter function characteristics
1) host, probes integration design, more convenient operation.
2) microcomputer technology, LCD liquid crystal display (LCD).
3) high performance battery, without external power supply, can be used for a long time, low voltage display, more suitable for field measurement.
4) can measure the larger leaf area (1000 * 155 was)
5) can store 250 set of data (leaf area, leaf length and width).
6) can measure various parameters of the blade: average leaf area, leaf area, leaf length, leaf width.
7) communication interface: RSR232 interface, can be the data into the computer. (this feature is only for type B and G)
8) GPS positioning: high-speed integrated GPS positioning module, upload data comes with time, latitude and longitude information, convenient and effective
Process the data. (this feature will only be G type)
Living leaf area meter/leaf area meter technology parameters:
(1) the area of the unit: cm2 (2) resolution: 0.01 cm2
(3) the measurement error: <5% (4) the width of the range: 0 ~ 155 mm
(5) length range: 0 ~ 1000 mm
(6) data record: 0 ~ 250 group
(7) power: section 4 batteries
