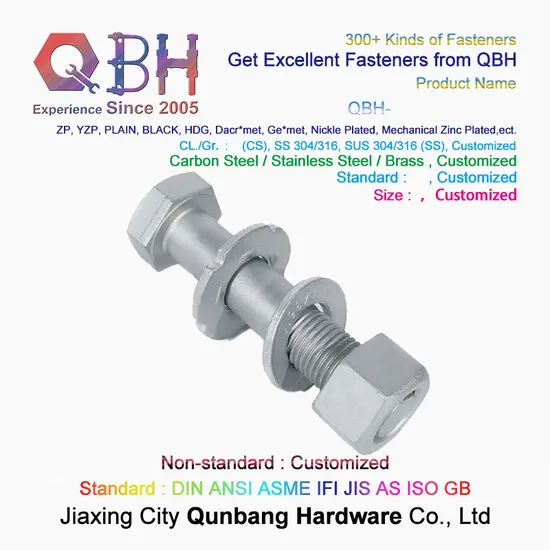

DIN6914 En14399-Hr Heavy Hex Bolts High Strength Hexagon Head Structural Bolt

Product Description

BS EN 14399-9:2009 High strength structural bolting for preloading. System HR or HV. Direct tension indicators for bolt and nut assemblies
BS EN 14399-9 specifies, together with BS EN 14399-1, the requirements for assemblies of high-strength structural bolts and nuts, with large width across flats, of system HR or HV, including the requirements for the general dimensions, tolerances, materials and performance for two grades, H8 and H10, of compressible washer-type direct tension indicators, nut face washers and bolt face washers suitable for preloaded joints.
The assemblies covered include the nominal thread sizes M12 up to and including M36 and property classes 8.8/8, 8.8/10 and 10.9/10.
Bolt and nut assemblies to this document have been designed to allow preloading of at least 0,7 fub × As1) according to BS EN 1993-1-8:2005 (Eurocode 3) and to obtain ductility predominantly by plastic elongation of the bolt for system HR according to EN 14399-3 or by plastic deformation of the engaged threads for system HV according to EN 14399-4; also countersunk and fit bolts according to BS EN 14399-7 and -8 respectively.
Bolt and nut assemblies conforming to this document may include washer(s) according to BS EN 14399-6 or to BS EN 14399-5 (under the nut only).
The purpose of the direct tension indicators is to show that a defined preload is achieved in the bolt. The direct tension indicator can be used alone or with bolt face washers or nut face washers conforming to BS EN 14399-9. In either case it is essential that the direct tension indicators are used as part of an assembly in accordance with BS EN 14399-1. To comply with BS EN 14399-1, it is essential that the assemblies are supplied by one manufacturer and include bolts, nuts, washers and direct tension indicators.
The test method for suitability for preloading is specified in BS EN 14399-2 and supplemented by Clause 5. Guidance on the use of compressible washer-type direct tension indicators is given in BS EN 1090-2. Compressible washer-type direct tension indicators are also known as load indicating washers.
Our Services
Professional Manufacturer: All of our Fastener are designed and manufactured according to buyers'
specification and performance.
Quality is guaranteed: Durability testing and critical technical design to enhance fasteners lifetime.
Cost effective: Competitive prices with professional factory supply
Perfect fastening solution with 15+ years experiences to solve your problem: Wide range of parts selection.
Customized Ideal Fasteners: customized services according to the samples and drawings offered. Free Samples for Standard Fastener from Jiaxing City Qunbang Hardware We Promise:
1.High quality2. Competitive price3. The shortest delivery4. The fastest response5. The best service
FAQ
1.What's your experience like?
Our general manager has been engaged in the export of fasteners since 2005.
Our team can provide you with professional fasteners selling and smooth export services.
2.How about your price?
High quality products with reasonable price. Please give me a inquire, We will quoted you a price for you
refer at once.
3. How do you control your quality?
We require the quality control department to inspect every production link of each shipment. And we can provide you MTC and mill certificate when the goods is finished.
4.How about your delivery time?
General speaking, if the goods is in stock, we can delivery them with 2-5days, If the quantity is 1-2container, we can give you with 18-25days,if the quantity is more than 2 container and you are very urgent, we can let factory priority produce
your goods.
5.What is your packing?
Our packing is 20-25kg for one carton,36 or 48pcs cartons for one pallet. One pallets is about 900-960kg, We also can make customer's logo on the cartons. Or we customized cartons according to customers'
requirement.
6.What is your payment term?
We can accept T/T,LC for general order ,Paypal and Western union for small order or samples order.
