Ck6150 Precision Horizontal Metal Turning CNC Lathe Machine for Sale

Ck6150 Precision Horizontal Metal Turning CNC Lathe Machine for Sale

US$7,391.00
1-2 Sets
US$6,881.00
3+ Sets

Basic Info.

Model NO.
CK6150
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Modle
Ck6150
Max .Swing Over Bed
500mm
Max.Swing Over Carriage
750/1000/1500/2000/3000mm
Spindle Taper
Mt6(Φ90 1:20)
Bed Width Size
400mm
Max.Weight Work Piece Between Centers
300kg
Thru-Hole of Spindle
52mm(80mm B Type)(105mm C Type)
Rapid Moving Speed
X-5000mm/Min Z--10000mm/Min
Repeatability Accuracy
0.006mm
Spindle Motor
7.5kw
Transport Package
W/Case by Sea
Specification
2550*1550*1700
Trademark
UNI-TECH
Origin
China
HS Code
8458100000
Production Capacity
200/Month

Product Description

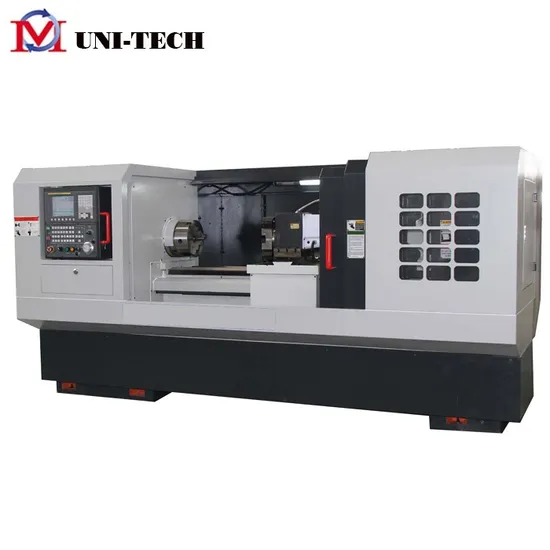

CK6150 precision horizontal metal turning cnc lathe machine for sale
Big torque, high precision spindle; Hydraulic chuck, easy to operate;(Optional) Z-Axis feed is directly connected which has high transmission accuracy and high positioning accuracy; Vertical 4-position electric tool post with high positioning accuracy; Shank size: 25x25mm. Optional six-station electric knife The machine is made of high strength cast iron with special material of copper and chrome. The width of bed guide is 400mm, the firing depth of bed guide rail is 4mm, which improves the abrasion resistance and stability of the machine. HERG Centralized lubrication from Japan; BAOTN Coolant system from Taiwan. X-axis and Z-axis feed movement are servo motor drive precision ball screw to achieve fast-forward and feed movement. The machine adopts the Hanjiang ball screw, Z-axis ball screw(Dia.50mm), X-axis(Dia.25mm) ball screw with tensile structure, improve the accuracy of the workpiece machining cylindrical and bore size Using Chinese famous brand Wafangdian bearings, spindle hole 80MM, the machine uses belt-driven stepless transmission, reducing machine noise and vibration 10.Machine use ISO international standard CNC G code, while compatible with Japan Fanuc (FANUC) CNC system. Domestic mainstream programming, to facilitate the operator faster and easier to use the system.
11.The CNC system is GSK980TDC, With both horizontal and vertical structure. With 8.4-inch color LCD, can control five feed axises (including Cs axis), 2 analog spindle, the minimum order unit of 0.1μm. PLC ladder drawing showing, monitor, New function of soft keys, graphical interface design, the dialog box type operation, friendly man-machine interface
12.Version in Chinese, English, Spanish, Russian, Portuguese are available .With more function of system time and warning log .
13.System program with 40M, 384 program , editing function: index, modify, and delete
14.Program form: ISO CODE, support editing working including
15.Macro programming statements type, support the relative coordinates, the absolute coordinate and hybrid coordinate programming;
16.Systems support RS232 interface: parts program, two-way transmission parameters such as files, support for PLC program, the system software upgrade serial and USB interface: U disk file operations, U disk file processing, directly support the PLC program, USB system software upgrade.
CK6150 precision horizontal metal turning cnc lathe machine for sale
ACCSSORIES===CK6150 precision horizontal metal turning cnc lathe machine for sale
Standard accessories
1. GSK 980TDC CNC controller or SIEMENS 808D CNC controller
2. 3- jaw manual chuck diameter 250mm
3.center MS GB9204.1-88
4. Electric Lubrication
5. 4 Positions tool post
6. Work light
7. double ended wrench, hexagonal wrench, square box wrench,hook spanners.
8. screwdriver
9. manual tailstock
10.hand push oil gun
11. foundation bolts
12.English operation manaual of machine, automatic lubrication device instruction,CNC SYSTEM instruction,quality passed testing booklet.
Optional accessories
1. FANUC or SIEMENS CNC controller
2. Spring fastener
3. 6 positions tool post
4. hydraulic tailstock
5. hydraulic chuck
CERTIFICATE====CK6150 precision horizontal metal turning cnc lathe machine for sale
International Exhibition===CK6150 precision horizontal metal turning cnc lathe machine for sale
Our Services:
1. Your inquiry and email will be replied within 24hours.
2. If you need to develop products with your own specification, we can help you to work it out.
3. Always be honest, never lie to customer, and never declare anything we don't have.
4. Customer First:,we offer best Quality and Service!
FAQ:
1. Payment Method:
30% deposit T/T in advance, rest against the copy of B/L or before delivery.
2. Delivery Time:
one week
3. MOQ:
1 set machine.
If you need machine with your own specification, logo, packing, etc, please negotiate with us.
4. Shipping:
For machine: Usually by sea;
For documents: by international express, eg. DHL,TNT or EMS
