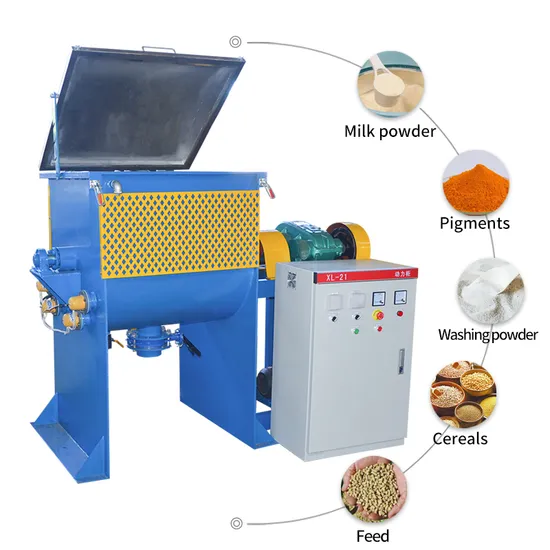

Custom Powder Ribbon Blending Machine Mixer Spraying Potting Soil Mixer

Product Description

Horizontal ribbon mixer is the introduction of foreign advanced technology, the factory professional and technical personnel to digest the innovative design results, is a new type of efficient mixing equipment.
The internal barrel surface is smoothed by polishing and equipped with center shaft and double S-shaped
paddle. Mixing materials process is fast and homogeneous,which can be finished within 5-10 minutes for
each batch. Mixture of special materials need to be confirmedby users.
Using Range
Widely used in chemical industry, medicine, compound fertilizer, dyes, pigments, rubber, building materials,
food, milk powder,health products, feed, additives,aquaculture, biological engineering, fine chemical industry,
ceramics, refractory materials,rare earth, plastic glass, new materials, nuclear materials and other industries.
Main Features
1) Horizontal tank body, need small space but more capacity. 2) Dual screw structure-The inner screw push the material form central to sides and the outer screw push the material from sides
to the center to make the material effective mixing. 3) Gear box drive the auger shaft , low noise and low malfunction, long using life. 4) U-Shape tank bottom, better for material discharge and cleaning. 5) Pneumatic cylinder to control the discharge exit.dry powder ribbon mixer horizontal ribbon mixer ribbon mixer 6) Air cylinder help the top cover easy open. dry powder ribbon mixer horizontal ribbon mixer ribbon mixer with heating 7) Heating,cooling function can be realized.dry powder ribbon mixer horizontal ribbon mixer ribbon mixer with heating 8) Customized ribbon blender available. dry powder ribbon mixer horizontal ribbon mixer ribbon mixer with heating 9) PLC controlled,equipped with mettler toledo weigh modular.
Horizontal Ribbon Mixer Parameters

Model	500L	1000L	2000L	4000L	6000L	8000L
Volume / L	500	1000	2000	4000	6000	8000
Motor Power / KW	5.5	7.5	15	22	37	45
Speed / r/m	41	33	33	27	27	23
Dimension / m	1.9*0.7.1.4	3*0.8*1.5	3.3*1.4*1.7	3.6*1.4*1.7	3.8*1.7*1.8	4.5*1.8*1.9
PlateThickness /mm	4	4	6	8	8	8
Material	Contact material SUS 304, other material carbon steel. SUS201, 316 is available

Specifications Configuration
1) Major sections: barrel, ribbon agitators, feeding parts, discharging part and driven unit 2) Sizes: available from 200L to 10000L.Ribbon auger mixer detergent powder horizontal ribbon mixer 3) Material: Carbon Steel, Stainless Steel 201,304,316L.
4) Discharge: Flap valve, butterfly valve, slide gate valve, ball valve, manually or pneumatically.
5) Speed:Constant speed rotation,also controls such as variable frequency drives, motor starters and operator
stations are available.
6)Temperature: mixer can be equipped with heating or cooling jacket if temperature control is required,
7)Spray :nozzles for liquid introduction.dry powder ribbon mixer horizontal ribbon mixer ribbon mixer
8)Open cover: pneumatic, manual.
