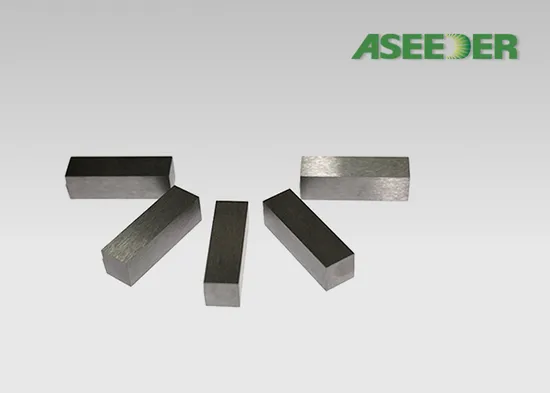

Wear Block Cemented Tungsten Carbide Inserts with High Hardness Grade

Product Description

Tungsten Carbide plates Application: Main used for machining copper sheet, stainless steel, SPCC, silicon steel sheet, also used for stampling die for electronic connector, LED lead frame, Electric motor rotor.
SEED is the leading manufacturer and exporter of tungsten carbide components, Nozzles radial bearings, as well as provide machining service and hardfacing processes based in China, with a branch office set up in Houston dedicated for North American's market in sales and customer support, we are able to manufacturing all kinds of tungsten carbide parts and wear parts based on your drawing and material specification requirement for difference industry application.
Tungsten Carbide Plates and Strips for Cutting Tools
Features:
High stability, long lifespan circle. Customized as your requirements. Approved factory for oil and natural gas industry TOP5 customers. With ASP9100 certificate , API certificate, ISO9001:2015 With a Special Thread Processing Workshop

Equivalent grade	ISO grade	WC%	Co%	Hardness (HRA±0.5)	Density (g/cm3±0.1)	TRS	Characteristics and Application
						Mps
						Min
YG6X	K01	94	6	93	14.85	2700	The fine grain size, suitable for processing of non- ferrous metal finishing and woodworking cutting tools.
YG10X	K20	90	10	92	14.45	3400	suitable for all kinds of milling cutter and hole machining tool.
YG13X	K20	86.5	13.5	90.5	14	3500	excellent abrasion resistance and toughness, suitable for carpenter's tools.
YG4	K02	96	4	92.5	15.15	2300	suitable for high hard finishing of grey cast iron.
YG6A	K10	94	6	92	14.95	2450	suitable for wire drawing die and woodworking cutting tools.
YG6X	K10	94	6	91.5	14.95	2500	applies to non-ferrous metal cutting.
YG6	K20	94	6	91	14.95	2600	Used for rough machining of non-ferrous metals.
YG8	K30	92	8	90	14.7	2700	suitable for wire drawing die, drawing die.
YG9	K40	91	9	89	14.6	2800	suitable for processing hard low grey cast iron.
YG11	K40	89	11	88.5	14.45	2900	suitable for wearing parts and mining tools.
YG12	K40	88	12	89	14.4	3000	suitable for rough machining of non-ferrous metals.
YG13	K40	87	13	88.5	14.2	3100	suitable for wear resistance and resistance to stamping parts

Tungsten Carbide plates Application: Main used for machining copper sheet, stainless steel, SPCC, silicon steel sheet, also used for stampling die for electronic connector, LED lead frame, Electric motor rotor.
Some size of tungsten carbide plates in K10, K20, K30, K40:
125x65xT1.5-15 mm
105x105xT6.0-70 mm
150x150xT20-70 mm
205x205xT15-45 mm
255x255xT15-35 mm
300x300xT15-30 mm
Meanwhile, 50x50xT, 100x100xT, 120x120xT size is available for speicific demand. We can do customized size in width 1-300 mm x Depth 1-300 mm x Thickness 1-300 mm.

Recommend grade list of Carbide Plate & Strip:
The grades which used more frequently are YG8, YG15, YG20, YG10.2, YG2T, YG10X etc.Other grades can be offered according to customers' requirements. Afterwards the board can be broken out from the panel.

Grade	ISO Grade	COBALT CONTENT	DENSITY	HARDNESS	TRS
		%	g/cm³	HRA	N/mm²
K10T	K05-K10	4.5-6.0	14.95-15.05	92.7	1800
YG8	K30	8	14.80	89.5	2200
YG6	K20	6	14.95	90.5	1900
YG6X	K10	6	14.95	91.5	1800
YL10.2	K30	10	14.50	91.8	2400
YG13X	K30-K40	13	14.30	89.5	2600
YG15	K40	15	14.00	87.5	2800
YL20.8	K40	15	14.00	88.5	3800

Major Product Lines
--> Wear resistant carbide components via powder metallurgy technique
--> Hardfacing (oxy-acetylene spray, PTA, HVOF, etc.) and surface enhancement (phosphating, boronizing, etc.)
--> High-precision machining of metals (S.Steel, carbon steel, Inconel 718, etc.)
--> Additive manufacture
