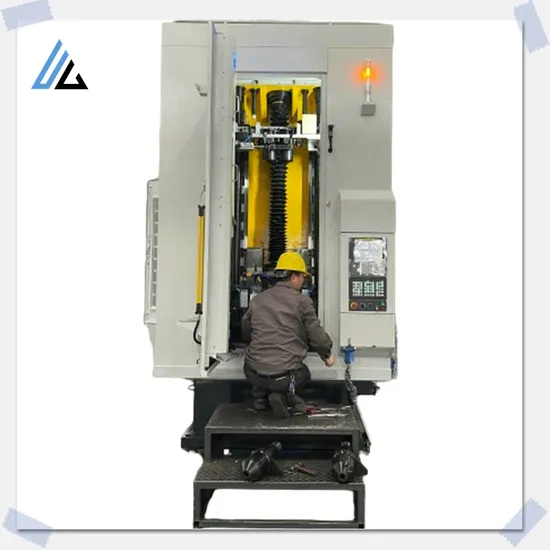

Precision Hydraulic Vertical Broaching Machine for High-Speed Production

Product Description

High-accuracy Hydraulic Driven High Speed Vertical Internal Broaching Machine The pull-down inner broaching machine tool is a vertical inner broaching machine with a semi-protected and fully escorted structure. The auxiliary slide plate is installed on the main slide plate. When the machine tool is working, the clamping device on the main and auxiliary slide plates simultaneously locks the front and rear tool handles of the broach. Provide effective support to ensure that the broach is fixed during the working process and there is no displacement at both ends. The workpiece to be processed is fixed on the workbench after self-centering. The broach moves downward. After broaching is completed, the material is unloaded and returned. , the fully escorted broaching method effectively ensures the accuracy and stability of the parts being processed. The installation methods of this equipment are divided into ground installation and buried installation.
This type of machine tool is suitable for processing various types of internal gears, internal splines, and inner holes of geometric shapes. The machine tool adopts hydraulic transmission and has stepless speed regulation through the human-machine interface. It can be divided into three types: fully automatic cycle mode, semi-automatic segmentation, and manual adjustment. operating mode. The machine tool is equipped with automatic tool adjustment function.
The machine tool can be equipped with optional automatic loading and unloading devices (truss manipulator or joint robot), which greatly reduces the operator's labor intensity and improves the quality and quantity of parts processing.
Product Description

Product Parameters

Rated force x Rated Trave	150kN x 1200 mm
Broaching speed(continuously viable)	0-80 m/min
Return speed(continuously viable)	0-80 m/min
Tooth profile precision	5 grade
Surface roughness	Ra1.6-0.8

Company Profile

Sunrise Mechatronic Technology Co., Ltd. is a professional enterprise engaged in research and development and manufacture of metal process machinery for more than 15 years. As a dynamic player in the machine tool industry, we take pride in our unique 'industry and trade integration' model, offering a holistic approach to meet diverse manufacturing and supply chain needs.
Integrated Manufacturing & Trade:
Our innovative model allows us to seamlessly integrate manufacturing excellence with efficient trade solutions. From the creation of advanced machine tools to their timely delivery to clients, we manage the entire process to ensure quality and reliability.
Product Portfolio:
Explore our comprehensive range of machine tools designed to cater to diverse industries. From CNC machining centers to precision lathes, our products are crafted with precision, reliability, and advanced technology at their core.
Customization & Flexibility:
Understanding that every client has unique needs, we offer customization options to tailor our machine tools according to specific requirements. This flexibility sets us apart, ensuring that our solutions align perfectly with our clients' manufacturing goals.
Certifications

FAQ
Q:What's your payment terms?
A:T/T,L/C,Paypal,Western Union etc.
Q:How long is the product warranty?
A: 24 months
Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer. Our products have been exported to Asia, South America, Africa, and have developed a good world wide reputation.
Q: What kind of product certification do you have?
A: All our products have passed ISO9001 and CE certifications. We have strict quality inspection process before leaving our factory in order to offer the best quality machines to our customers.
Q: Do you have after sales service?
A: Yes, we have special service team which will offer you professional guidance, or On-site installation in customer Factory.
Q: Do you test all your goods before delivery?
A: Yes, we have strict quality inspection process including a load test for every machine before leaving our factory.
