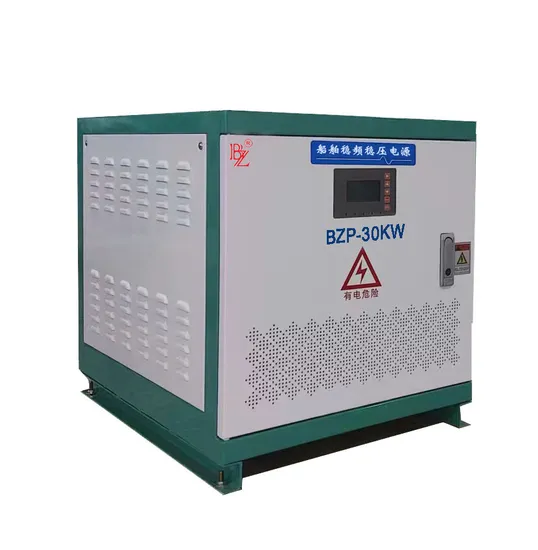

3kw~ 30kw AC Power Supply 260-500VAC Stable Voltage 380VAC Marine Generator Stable Voltage Converter Three Phase Power Converter

Product Description

3kw~ 30kw AC power supply 260-500VAC stable voltage 380VAC marine generator stable voltage converter three phase power converter Company Profile
Bangzhao Electric Co.,Ltd is a company who was established in 2008 and specialized in developing and supplying of power products. The high performance of its products stems from the cutting-edge technology developed by the domestic top 100 engineers. During the past 10 years, we have been providing the best system solutions of Life PO4 battery pack cabinet,Boat inverter ,Car inverter,Solar inverter,Wind-Solar Hybrid inverter,lithium battery charger,PWM/MPPT solar charge controller,PV pump inverter,Explosion-proof inverter,DC combiner box,AC to DC battery cabinet ,Single Phase to 3 Phase Converter,Lithium battery storage system etc. to customers, it is widely applied in the industry of solar energy,wind power,water power,car,ship,train,hospital, aviation,automation,etc.
Product Description Ship voltage and frequency stabilisation power supply is mainly for ship generator voltage and frequency fluctuation is large, and lead to the load equipment can not work normally and design and development, the ship voltage and frequency stabilisation power supply can be voltage stabilisation, frequency stabilisation processing of the power supply, the output of high-quality, high-reliability voltage and frequency stabilisation power supply, to avoid due to the voltage and frequency fluctuation is too large, the waveform distortion is large and the hazards of the load equipment.
The working principle of ship voltage and frequency stabilised power supply is alternating - direct - alternating principle after svpwm space vector pulse width modulation method, so that the generator voltage after re rectification and inversion, in line with the rated voltage of the local load, that is to say, the ship voltage and frequency stabilised power supply can be simulated in other countries of the power grid, and the carrying capacity is strong, it is a kind of ideal power stabilisation equipment.
Main Parameters:
1, Input voltage: single-phase 130-300V & three-phase 260-500V
2, Input frequency: 35-70hz
3, Output voltage: 220v/380v±0.5%.
4, Output frequency: 50hz/60hz ± 0.01%
5, Conversion efficiency: ≥92%
6, Dynamic response: ≤ 20ms
7, Waveform distortion: ≤ 3%
8, the original Mitsubishi sixth-generation intelligent module IPM, the United States dsp28335 control chip, isolated transformer output, stable and durable. Over-voltage, over-current, short-circuit and overheating device, 32-bit microprocessor control, lcd liquid crystal + led alarm indication.
9, suitable for three-phase balanced and any unbalanced load, can also be used as a single-phase power supply. It can adapt to resistive, capacitive, inductive and other types of loads and mixed loads. Dual mode start function, frequency conversion start and reduced voltage soft start function. It can overcome the problem of starting shock with high power motor. Save money.
10, Power range: 3kw-200kw, can be customizedto customer's requirements.
Product Parameters Technical Data for nomal model,can be customized

Model		BZT-15KW			BZT-30KW
Isolation mode		Low Frequency Transformer/Without isolation transformer
AC Input	Voltage range (VAC)	300-450V 3 phase			300-480V 3 phase
	Rated current(A)	22.7A phase current			45A phase current
AC Output	Rated output power	15KW			30KW
	Output waveform	Pure Sine Wave
	Rated Voltage	220V±3%	380VAC±3%		220V±3%	380VAC±3%
	Phases	Single phase	3 phase 4 wire		Single phase	3 phase 4 wire
	Rated current(A)	68A	23A (phase current)		136A	45A (phase current)
	Frequency	50Hz or 60Hz
	Rated output voltage range (V)	110/120/220/230/240/380/400/415VAC optional
	Power Factor(PF)	0.99
	Overload Ability	150%, 5 seconds
	Efficiency	>93%
	Waveform distortion rate (THD)	<3%(Linear load)
	Dynamic Response (0 to 100% load)	5%,≤50ms
	Display	LCD
	Running mode	Working continuously
	Electrical insulation properties	2000Vac, 1 Minute
Communication interface (optional)		RS485
Protection Function	Protection	Input reverse polarity, under voltage, overvoltage, output over-current, short circuit, overheating etc.
	Cooling method	Fan-cooled
	Short-circuit protection	No automatic recovery, need to restart the machine
Working environment	Noise ( 1 meter)	≤50dB
	Degree of protection	IP32(indoor)
	Working Altitude(m)	≤2000
	Working temperature	-25~+55ºC
	relative humidity	0~90%,non-condensing

Above parameter only for reference ,could be custom made to user specifications.
3-phase voltage regulator converter:
3-phase to single phase voltage regulator converter:
3-phase to split phase voltage regulator converter:
Above parameter only for reference ,could be custom made to user specifications.
