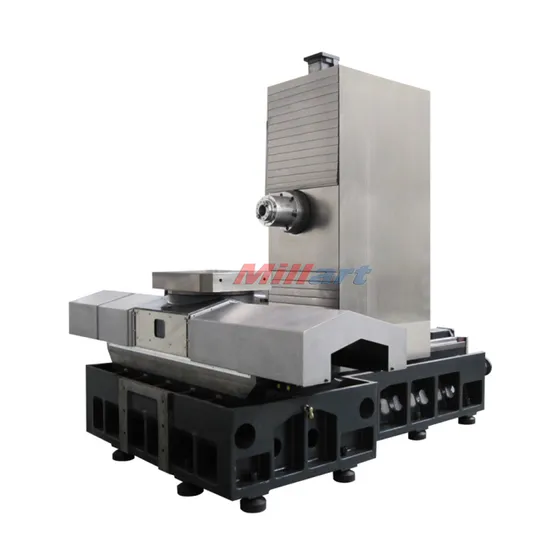

Horizontal Milling Machine Hmc800 Center CNC Machining Center
| US$70,000.00-80,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HMC800 HMC800/1 HMC800/2 HMC800/3
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, RoHS, ISO 9001
Condition
New
Worktable Size
800X800 mm
Worktable Loading Capacity
1500 Kg
X/Y/Z Travel
1100/850/900 mm
Transport Package
Wood Case
Specification
CE ISO9001 RoHS
Trademark
L&T
Origin
Tengzhou China
HS Code
8457102000
Production Capacity
100 PC/Month
Product Description
Horizontal Milling Machine HMC800 Center CNC Machining CenterTechnical parameter:
| Specification | HMC800 | HMC800/1 | HMC800/2 | HMC800/3 | |
| Single table | Double table | Continuous indexing single table | Continuous indexing double table | ||
| Worktable | Worktable size | 800×800mm | 800×800mm | 800×800mm | 800×800mm |
| Worktable number | 1 | 2 | 1 | 2 | |
| Worktable indexing | 1°X360 | 1°X360 | 0.001° | 0.001° | |
| Worktable transmission | 240 | 240 | 160 | 160 | |
| Worktable loading capacity | 1500kg | 1500kg | 1500kg | 1500kg | |
| Travel | Worktable movement left and right(X Axis) | 1100mm | 1100mm | 1100mm | 1100mm |
| Spindle head movement up and down(Y Axis) | 850mm | 850mm | 850mm | 850mm | |
| Column movement forward and backward(Z Axis) | 900mm | 900mm | 900mm | 900mm | |
| Distance from spindle center to worktable surface | 100~950mm | 0~850mm | 100~950mm | 0~850mm | |
| Distance from spindle nose to worktable center | 180~1080mm | 180~1080mm | 180~1080mm | 180~1080mm | |
| Spindle (Taiwan) | Max. Spindle speed | 6000rpm | 6000rpm | 6000rpm | 6000rpm |
| Spindle taper | BT50-190 | BT50-190 | BT50-190 | BT50-190 | |
| ATC | 24 (30/40) | 24 (30/40) | 24 (30/40) | 24 (30/40) | |
| Motor | Spindle motor | 15kw | 15kw | 15kw | 15kw |
| X,Y,Z axis servo motor | 30/30/30 Nm | 30/30/30 Nm | 30/30/30 Nm | 30/30/30 Nm | |
| B axis servo motor | 12N.m | 12N.m | 22N.m | 22N.m | |
| APC servo motor | / | 22N.m | / | 22N.m | |
| Leadscrew (Taiwan) | X/Y/Z(Diameter×Pitch) | 45×12/45×12/50×12 | 45×12/45×12/50×12 | 45×12/45×12/50×12 | 45×12/45×12/50×12 |
| Rapid speed | X/Y/Z | 24m/min | 24m/min | 24m/min | 24m/min |
| B axis | 10r/min | 10r/min | 10r/min | 10r/min | |
| Positioning accuracy | X/Y/Z | 0.012 | 0.012 | 0.012 | 0.012 |
| B axis | 12″ | 12″ | 15″ | 15″ | |
| Repositioning accuracy | X/Y/Z | 0.008 | 0.008 | 0.008 | 0.008 |
| B axis | 6″ | 6″ | 10″ | 10″ | |
| Machine overall dimensions | 3500×3000×2700 | 5500×3000×2700 | 3500×3000×2700 | 5500×3000×2700 | |
| Machine net weight | 12000kg | 14000kg | 12000kg | 14000kg | |
Stanard accessories:
| Fanuc 0i MF control system |
| 24 Tool disc type ATC from Okada |
| Automatic chip conveyor |
| Nitrogen balance |
| Schneider component in cabinet |
| Full closed cover |
| Automatic lubrication |
| Coolant system |
| Work lamp |
| Tri-color indication lamp |
| Air conditioner in cabinet |
