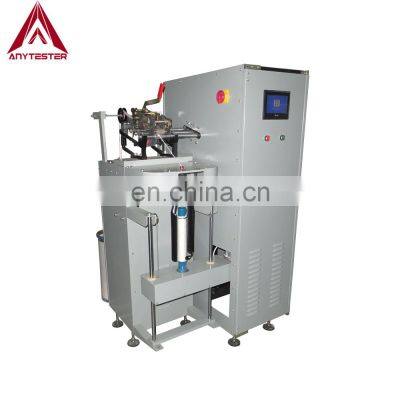

Mini Laboratory Ring Spinning Machine

Product Description

Product Description
Product DescriptionHY1006 Laboratory Ring Spinning Machine is part of the mini spinning system. It’s mainly used in university, researching center etc. and it is used to convert roving into yarn. And in the same time, impart strength to the yarn by inserting the necessary amount of twist and then winding the twisting yarn on bobbin or tube.Features1. Imported frequency converter control, high efficiency.2. Mini type machine, save researching cost and easy to operate and maintain3. Can perform four functions in one machine, open cotton bale, remove impurities, blend cotton and lapping.4. Can be used for cotton fiber or wool fiber (alternative)with different machine partsSpecification ModelHY1006 Laboratory Ring Spinning Machine Spindle number6Fiber typeCotton or wool (alternative)Twisting range50-250 twist/mDrafting rangeApprox. 2~50Fiber length22 ~ 42 mmOutput capacity0.25 ~ 1 kg per hour or customizedRoller diameterΦ28/25/25mmRing diameterΦ38 ~ 45mmRing spindle speed600rpmSpindle driveZ or S twist optionalPower220V/380V, 50/60Hz, 550WDimension1000*800*1600mm
