Metalworking Machine Tool Pre-Milling Cutter CE Certificate

Product Description

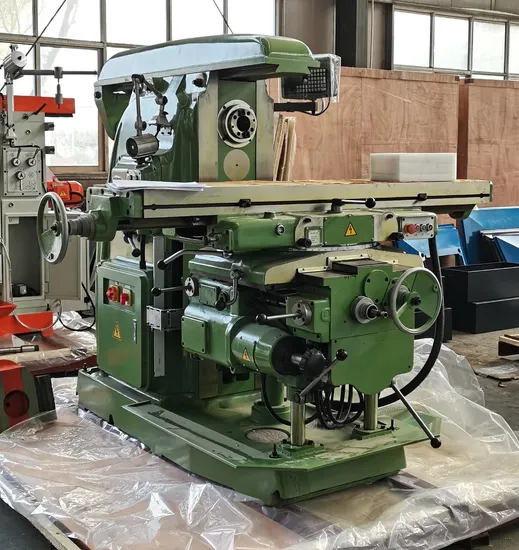

X6140 horizontal manual milling machine for metal processing
Product Description
√ conventional horizontal knee type milling machine
√ gearbox directly driven spindle for powerful milling
√ 18 steps, 30-1500rpm wide range spindle speed, ensures good torque when operating
√ mechanical driven work-table with high rigidity
√ work-table swivel ±45° (left and right), enlarge the processing range
√ high rigidity machine structure ensures 800kg (X6140), 500kg (X6132) heavy load capacity
√ control buttons are located both in front and at side of machine body, convenient to operate
Product Parameters

Specification	Unit	X6140	X6132
Table size	mm	1700X400	1325X320
T-slots(NO./Width/Pitch)		3/18/90	3/18/70
X axis travel(manual/auto)	mm	900/880	700/680
Y axis travel(manual/auto)	mm	315/300	255/240
Z axis travel(manual/auto)	mm	350/330	320/300
Rapid feed speed	mm/min	2300/2300/770
Table feed speed-X/Y	mm/min	23.5-1180
Table feed speed-Z	mm/min	8-394
Max load	kg	800	500
Spindle taper		7:24 ISO50
Spindle speed range	r/min	30~1500
Spindle speed step	steps	18 steps
Max.swivel angle of table		±45°
Spindle axis to table distance	mm	30-380	30-350
Main motor Power	kw	11	7.5
Overall dimensions	mm	2556×2159×1770	2294X1770X1610
Net weight	kg	3850	2650

Standard Configuration
stanard configuration

.	Item	Specification
1	lubrication system	-
2	water cooling system with spray nozzle	-
3	work lamp	-
4	draw bar	-
5	milling chuck set	ISO50 (or ISO40)
6	reducer sleeve	ISO50-Φ40 (or ISO40-Φ32)
7	tools & metallic tool box	-

Optional Configuration


Certifications
products are strictly according to European standard, with CE certificate
Packaging & Shipping
Delivery time: generally 60 days production time after confirmation of order Packing type: machine is covered with damp-proof plastic film, then packed in plywood case (with steel pallet) Delivery type: 20GP container is enough to load
Company Other Products
Company has mainly 12 series products include hundreds of models:
CNC gantry type machining center,
VMC machining center,
Simple NC milling machine,
conventional Vertical milling machine,
conventional Horizontal milling machine,
conventional Universal swivel head milling machine,
conventional Sliding ram milling machine,
conventional Bed type milling machine,
conventional Tool milling machine,
conventional Gantry milling machine etc.
FAQ
1. What is the MOQ ?Minimum order quantity is 1 set.2. What is the payment term ?Usually we prefer T/T. 30% deposit, 70% balance payment against machine ready to delivery photos and videos.Other payment terms are also acceptable after discussion.3. What is the trade terms ?Usually is FOB.Others like CIF, CFR, EXW...... are also acceptable.4. How long is the guarantee ?12 month after machine's delivery from factory.Within warranty, we guarantee spare parts free of charge and online supports for installation, operation, maintance and trouble shooting etc.5. What kinds of machines do you supply?Company specialized in producing CNC & manual milling machines. Include:CNC gantry machining centerVertical machining centerSimple NC milling machineConventional manual milling machines (Vertical, Horizontal, Universal, Turret mill, Swivel head mill, Power sliding ram type, Bed type, Tool milling machine, Gantry type etc.)5. How can I believe your company ?XILI Machine Tool has more than 20 years milling machine production history, covers an area of about 50000 square meters, with 20 million CNY fixed assets and more than 200 employees.Xili Machine Co., Ltd. is a ISO9001 company, all products are with CE certificate.XILI Machine Tool has more than 20 years milling machine production history, covers an area of about 50000 square meters, with 20 million CNY fixed assets and more than 200 employees.Xili Machine Co., Ltd. is a ISO9001 company, all products are with CE certificate.
