High Precision Conventional Manual Universal Cylindrical Cylinder Grinding Grinder Machine Dia. 500mm; 630mm, 800mm

Product Description

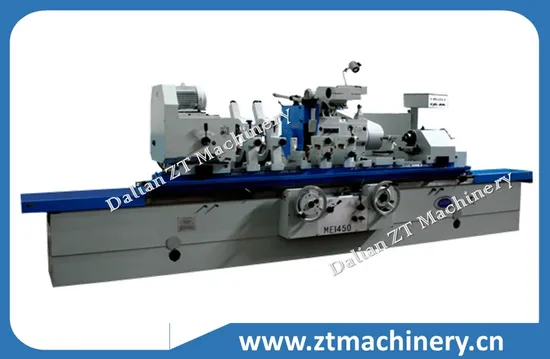

The Universal Cylindrical Grinding Machine is designed for grinding cylindrical or conical external surface with accuracy of IT5 and IT6. It is most suitable for tooling or repair workshop in small batch production. The longitudinal travel of worktable is controlled steplessly by hydraulic system or by handwheeel. The infeed of wheelhead is carried out by hydraulic automatic periodic feed and also by handwheel. The rapid approach and withdrawal of wheelhead retracting of tailstock center lubrication of slideway and lead-screw are all hydraulically controlled.

Item	M1450
OD grinding diameter	Φ200-500mm
ID grinding diameter	Φ25-200mm
Center height	270mm
Workhead spindle speed	114r/min
Max. Travel of table	1000/1500mm
Max. grinding depth for ID	320mm
Max. Workpiece weight	1000kg
Grinding length External/Internal	1500,2000,3000mm
Width of grinding wheel	50-75mm
External wheel size	¢600x63x¢305mm/¢450x63x¢305mm
Internal wheel spindle rotating speed(max.)	11000rpm
Workhead and tailstock center	Morse No.6
Total motor power	13.85kW

Standard accessories:
Wheel dismount tool;
Coolant tank;
Wheel dresser;
Wheel with flange;
Wheel balancing arbor;
Measuring plate;
Driving dog;
Parallel wedge;
FAQ
1. How can I choose the most suitable machines ?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.

3. Is machine tested ?
A: The accuracy, noisy will be tested according to China GB standard.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5. What's the Payment Terms ?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.

6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.
