Mini CNC Fully Automatic High Precision Metal CNC Lathe Machine

Product Description

Product Description
Introducing the Metal Cutting CNC Lathe with 210mm Swing for Precision and Efficiency, an epitome of cutting-edge technology and engineering excellence. This machine series is adorned with a sleek, compact design that not only enhances its aesthetic appeal but also integrates a robust spindle that unleashes substantial torque. Its outstanding rigidity guarantees unwavering stability and reliability, while its remarkable accuracy ensures precision over prolonged periods. The machine boasts high positional precision and effortless chip evacuation, making it ideal for high-speed, high-precision machining tasks. This engineering marvel can automatically process a variety of surfaces including inner and outer cylindrical, cone, circular arc, and end faces with unparalleled efficiency. Furthermore, it excels in handling single and multiple threads across metric, inch, and other standards, ensuring impeccable performance.
Detailed Photos
Product Parameters

SPECIFICATIONS	UNIT	CK6140
Max swingoverbed	mm	∅400
Max swingover cross slide	mm	∅180
Max processing length	mm	750/1000/1500
X/Zaxi;tra-1	mm	x:240 z:750/1000/1500
Spindle speed	rpm	L:70-560 H:200-1600
Spindle nose		C6
Spindle bore	mm	∅52
Spindle taper		MT6
Spindle motor	kw	5.5
Chuck size	mm	∅200
Ball screw dia and pitch		2505/4006
X/Zaxis feed motor torque	N.m	5/7.5
X/Zaxis rapid traverse	m/min	X:6 Z:8
X/Zaxis repeatabilty	mm	±0.005
Processing accuracy		IT6-IT7
Workpiece surface roughness		Ral.6
Tailstock sleeve dia	mm	∅65
Quill traverse	mm	140
Quill taper		MT4
System		GSK

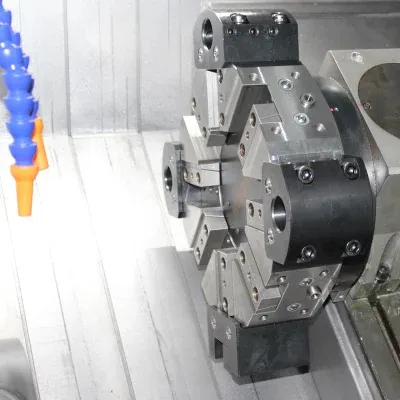

Tool postform		Electric six station
Voltage	v	3 PHASE 380V 50HZ
Machine dimension (L*W*H)	mm	2300*1500*1700
Gross weight	kg	1900

Product description:
1. Experience the perfect blend of sheet metal design aesthetics and user-friendly operation, crafted for an exceptional user journey.
2. The bed frame is crafted from top-tier resin sand, with aging rail super audio quenching that delivers outstanding wear resistance.
3. The advanced rail laminating process significantly boosts wear resistance, prolonging equipment lifespan.
4. The high-precision rolling screw vice transmission features three-point positioning with double support, ensuring superior accuracy.
5. A centralized lubrication unit provides comprehensive lubrication across all moving parts, enhancing the equipment's longevity.
6. Equipped with multiple clamping options to effortlessly accommodate a variety of operational requirements.
Fit Range
1. Masterfully capable of turning cylindrical, taper, arc, externality, cut-through, boring, reaming, and crafting various screw threads with precision.
2. Ideal for a multitude of applications including automotive and mobile parts, valves, electric tools, and hardware meters, consistently achieving high standards in surface roughness.
Packaging & Shipping

Company Profile
Liaocheng Wayne New Materials Co., Ltd. is a pioneering force in CNC Router and Laser Engraving & Cutting technology. Situated in the dynamic and innovative environment of Liaocheng city, Shandong, our extensive portfolio features an impressive range of advanced machinery. Our lineup includes Large-scale ATC Woodworking Router Machines, sophisticated 5-axis CNC Router Machines, dependable CNC Advertising Router Machines, precise CNC Marble Engraving Machines, efficient CNC Plasma Cutting Machines, innovative CNC Metal Mold Machines, versatile CNC Lathe Machines, high-precision Swiss Type Lathe Machines, cutting-edge Fiber Laser Cutting Machines, adaptable CO2 Laser Cutting & Engraving Machines, state-of-the-art Laser Marking Machines, and highly effective Laser Welding Machines, among others. By leveraging avant-garde technology and adhering to stringent quality standards, we are dedicated to nurturing the global brand 'Wayne.' Our meticulously crafted products have made their mark in over 100 countries, including strategic markets like the United States, Germany, Indonesia, Canada, Australia, Russia, and extensively across Southeast Asia. This extraordinary global reach solidifies our status as a true leader in the international arena.At the heart of our mission is a commitment to delivering unparalleled service excellence to our valued customers. Whether seeking standard solutions or bespoke configurations, we are adept at providing precisely tailored solutions to meet your distinct needs. Each component of our cutting-edge machines is meticulously sourced from globally acclaimed suppliers and industry pioneers in machine control, ensuring unmatched performance and reliability. Our machines seamlessly integrate into diverse industries and artistic endeavors, including woodworking, intricate metal and stonework, aluminum fabrication, boat building, shop fitting, and precision mold making. Supported by a dedicated and skilled after-sales service department, an expert sales team, and rigorous quality assurance protocols, you can purchase from us with utmost confidence. We warmly extend an invitation to customers and prospective business partners worldwide to engage in collaborative ventures, paving the way for mutual success. By offering superior service, impeccable quality, and competitive pricing, Wayne stands as your ultimate choice. We eagerly anticipate collaborating with you to generate greater value. Reach out to us with your requirements, and let's engage in a rewarding conversation. We await your contact, ready to embark on a promising journey together.
FAQ

Q: Are you trading company or manufacturer ?
A: We are factory. Wayne machinery is a manufacture of cnc lathe cutting machine and laser cutting machine ,In fact,we do export for more than 15 years , our goods are very polupare to all over the world.We believe that a brighter further is waiting for us.
Q: How long is your delivery time?
A: Generally it is 15-30 days ,it is according to different machine model and different configuration and order quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Also we would like to do LC at sight.
Q: Where is your factory located ? How can I visit there ?
A: We are located in Liaocheng City. Which is only 1 hours' away from Jinan by train.
Also you can fly to JINAN Airport, it is only 1 hour and we will pick up you.
