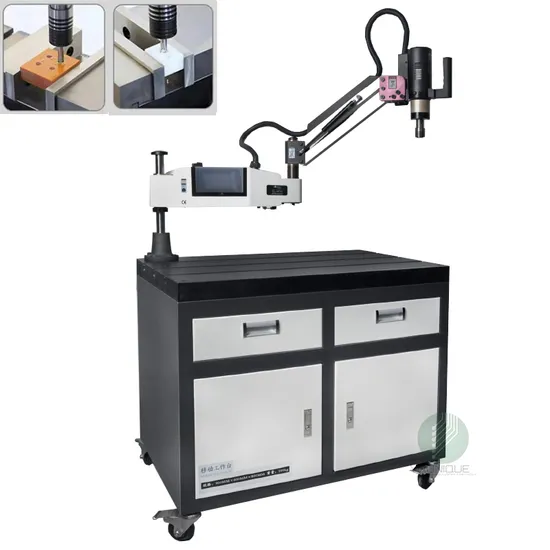

Threaded Components for The Automotive and Mechanical Industries Power Tapping Machine

Threaded Components for The Automotive and Mechanical Industries Power Tapping Machine

US$300.00-1,500.00 1 Set (MOQ)

Basic Info.

Model NO.
YE-M10
Structure
Mill Drilling Machine
Layout
Horizontal
Controlling Mode
CNC
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
Normal Precision
Certification
CE, RoHS
Condition
New
Machine
Custom Machine
Voltage
220V/50Hz
Spindle Speed
1200rpm
Package Size
700*660*220mm
Equipment Weight
31kg
Model
M10
Rated Power
600W
Transport Package
Wooden Case
Specification
850*800*300mm
Trademark
Yqunique
Origin
China
HS Code
8207400000
Production Capacity
1000 Set/Year

Packaging & Delivery

Package Size
85.00cm * 80.00cm * 30.00cm
Package Gross Weight
55.000kg

Product Description

Product Description
1. The machine adopts servo drive control, with intelligent torque protection, instead of the traditional lathe, drilling machine or manual tapping limitations.2. Advanced mechanical design, a variety of processes using mold castings, the overall rigidity is strong, durable, non deformation, beautiful appearance.3. The high definition touch screen is simple and flexible. It can realize the vertical and horizontal work of complex and heavy workpiece, locate quickly, and process accurately.4. Stepless speed change, manual, automatic, linkage three modes of work, whatever you choose.5. Automatic mode can effectively control the depth of tapping, without the operation button, automatic control by depth controller.6. Repeated positioning fast, tapping speed, high production efficiency.
Technical Parameters
Model M10 M12 M16 M20 M24 M30
Input Voltage 220V/50HZ 220V/50HZ 220V/50HZ 220V/50HZ 220V/50HZ 220V/50HZ
Rated Power 600W 600W 600W 600W 1200W 1200W
Tapping Range M3-M10 M3-M12 M3-M16 M3-M20 M3-M24 M3-M30
Operation Mode Vertical /Vertical Horizontal
Working Radius 1045mm 1045mm 1045mm 1045mm 1180mm 1180mm
Maximum Speed 1200rpm 660rpm 375rpm 240rpm 550rpm 200rpm
Package Size 700*660*220mm 700*660*220mm 700*660*220mm 700*660*220mm 810*770*220mm 810*770*220mm
Equipment Weight 31kg 31kg 31kg 31kg 52.5kg 52.5kg



Main Application
Packaging & Shipping
Company Profile
Certification and Exhibition
FAQ
Q: How to choose the most suitable machines?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
Q: What delivery time for standard machine?
A: Within 20 working days after received advanced payment.
Q: What about your machine warranty?
A: One year warranty after machine reached customer's workshop.And will responsible for lifetime maintenance
Q: What about delivery terms and payment terms?
A: Delivery terms: 50% deposit, 50% paid before shipment.FOB Ningbo, ClF your portPayment Terms: T/T, L/C
Q: How about your service?
A: Before Sales Serive:
1. We will confirm the right model according to the offered pipe inforamtion.
2.Welcome to visit our factory and workshop before you place an order.
After Sales Service:
1. We provide manual,detailed machine installation,commissioning video for operate machine.
2.We provide free installation,commissioning and training at our factory.
If you need enginer go to your factory for machine training, air tickets,food,hotel, local transportation, engineer's salary should be at your account.
3. Any problems on machine,we will reply you by email/tel or other online contact within 24 hours.
