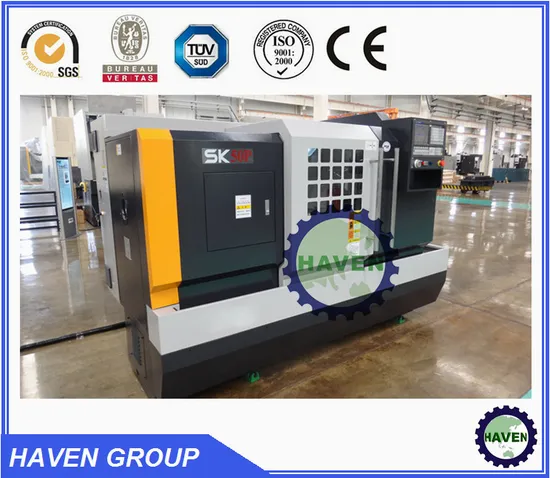

New Condition SK40P CNC Lathe Machine
| US$1,000.00-100,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SK40P/1500
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Swing Over Bed
400mm
Max. swing dia. over carriage
200mm
spindle bore
77mm
main motor
7.5KW
Transport Package
Veneer Box
Specification
SK40P/1500
Trademark
HAVEN
Origin
China
HS Code
8466
Production Capacity
50 Units/Month
Product Description
New Condition SK40P CNC Lathe MachineMain feature:
SK50P, SK40P horizontal CNC lathes that spindle speed are changed mechanically in three gears together with control of a frequency changer. The lathe has 4 types (750, 1000, 1500, 2000). Equipped with 4-station (standard) 6-station turret (optional), the lathes are available for different cuttings. The sliding door ensures the operator's safety. CNC systems such as Guangzhou 980T, FANUC 0I Mate-TD, Huazhong 21T, Sinumerik 802C basline 802DSL, Dasen 3I, KND1000T, etc. Is provided on request. The lathes can perform internal and external cylindrical turning, arbitrary taper turning, arc turning, facing and threading. They are suitable for various middle or small batch production, especially for complicated and high accuracy workpieces.
Main specification:
| ITEMS | UNIT | SK40P | SK50P | ||
| Capacity | Max. swing dia. over bed | mm | Φ400 | Φ500 | |
| Max. swing dia. over carriage | mm | Φ200 | Φ280 | ||
| Max. turning diameter | mm | Φ400/Φ350* | Φ500/Φ350* | ||
| Distance between centers | mm | 710/960/1460/1960 (620/870/1370/1870) | |||
| Max. turning length | mm | 570/820/1320/1820 (500/750/1250/1750) | |||
| Spindle | Type of spindle nose | ISO 702/II D8 Short-taper cam-locking type | |||
| Spindle bore diameter | mm | Φ77 | |||
| Spindle speed | rpm | 3-step;21-1620; H:162-1620; M:66-660; L:21-210 | |||
| Max. torque of spindle | N.m | 800 | |||
| Spindle drive motor power(continuous or 30minutes) | kW | 7.5 | |||
| Tailstock | Quill diameter | mm | Φ75 | ||
| Quilltravel | mm | 150 | |||
| Tailstock quill taper | . | Morse No.5 | |||
| Turret | X/Z rapid traverse rate | m/min | 6/12 | ||
| Number of tool stations | 4(6 Option) | ||||
| Tool section | mm | 25×25 | |||
| X travel | mm | 300 | |||
| Z travel | mm | 650/900/1400/1900 | |||
| Others | Dimensions(L) | mm | 2250/2500/3000/3500 | ||
| (W) | mm | 1370 | |||
| (H) | mm | 1690 | |||
| Package dimensions (L×W×H) | mm | 2550/2800/3300/3800×1920×2200 | |||
| Net weight | kg | 2050/2100/2150/2200 | 2100/2150/2200/2260 | ||
