Compact Two Roll Open Rubber Mixing Mill Manufacturer (xk-560) , Silicone Mixing Mill, Rubber Two Roll Mill, Compound Mixing Mill with CE Certificate

Product Description

Rubber Two Roll Open Mill with Stock Blender
I. Feature
1. Roller adopt alloy chilled cast iron. Its surface is with high hardness and wearproof. Roller surface do mirror processing. Two rollers inner hollow spray type. Roller surface temperature uniformity.
2. Roller is ball bearing, grease lubrication structure.
3. Roller adopt device respectively adopt worm wheel, worm drive. It could optional install motorized nip adjustment,easy to operate.
4. This machine is whole base structure, convenient to install.
II. Technical parameter

Item	XK-160	XK-250	XK-360	XK-400	XK-450	XK-550	XK-560	XK-660	XK-710
Roll diameter (mm)	160	250	360	400	450	550	560-510	660	710
Roll working length	320	620	900	1000	1200	1500	1530	2130	2200
Front roll linear speed (r/min)	9	16.3	16.7	19.3	21.8	22.5	27.2	28	31.9
Speed ratio of rolls	01: 01.4	01: 01.1	01: 01.3	01: 01.3	01: 01.3	01: 01.2	01: 01.2	01: 01.2	01: 01.5
Max roll space (mm)	4.5	8	10	10	12	16	15	0.5-15	0.5-15
Compound feeding capacity(kg)	1-2	10-15	20-25	18-35	50	50-65	50-65	165	190
Motor power(kw)	5.5	18.5	30	45	55	110	90	240	280
Dimensions(L× W× H)
L (mm)	1133	2722	4200	4920	5405	6646	6270	7280	8185
W (mm)	920	1115	1780	1780	1740	2736	2282	3400	3910
H (mm)	1394	1345	1760	1800	1790	2105	2000	2530	2270
Gross weight (T)	~2	~3.2	~6.5	~8	~11.4	~22	~22.5	~49	~51

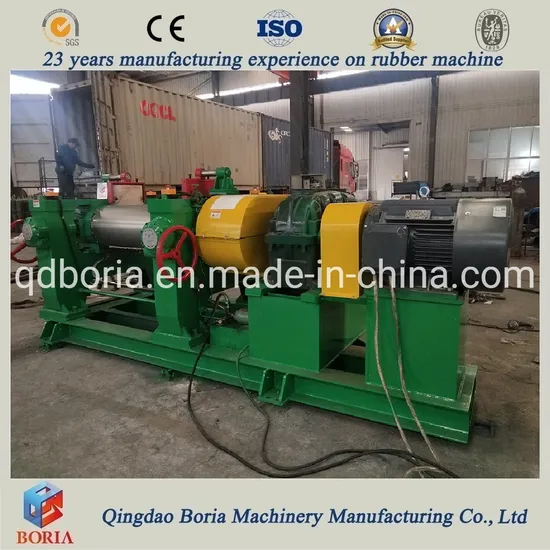

III. Detailed Picture for Reference
IV. Test Running Or Inspection Before Delivery
V. Packing and Loading Pictures for Reference
VI. Our machine list
Our company professional manufacture rubber vulcanizing press (frame type,four column type,lab press and so on), rubber mixing mill, batch off cooler, rubber extruder, rubber strip making machine and tire recycling equipment.
VII. Our service
1. Test running: The above machines are all passed inspection of 3~5 hours of full load operation before leaving our factory. And we will take the video and send it to you for inspection. You can use it directly thus saving the time of test-run and expense. And we also warmly welcome to our factory to inspect and test running.
2.Warranty: 12 months after installation, if our machines have any problems, please feel free to contact me. We will solve it for you as soon as possible, and give you the best services.
