PE100 HDPE Corrugated Perforated Drainage Pipe Manufacturers

PE100 HDPE Corrugated Perforated Drainage Pipe Manufacturers

US$0.50-8.50 300 Meters (MOQ)

Basic Info.

Model NO.
Hdpe Perforated Drainage Pipe
Material
PE
Kind
Thermoplastics Pipes
Water Absorption
Less Than 3%
Contraction Percentage
Less Than 3%
Tensile Strength
30~40MPa
Product Name
PE Perforated Pipe
Color
Black or Customized
Package
20′ or 40′ Container
Raw Material
PE100/PE80
Wall Thickness
SDR9 - SDR27
Max Nominal Pressure
0.6MPa-2.0MPa
Application
Parks, Roads, Tunnels
Certificate
CE, ISO9001:2008, UL, QS, GMP
Connection
Soft Connection
Style
Underground
Working Tempreature
-60°c~60°c
Usage
Drainpipe
Shape
Round
Characteristic
Good Flexibility, Corrosion Resistance, Excellent
Fearture
Corrosion Resistant, etc
Transport Package
Standard Export Packing
Specification
DN50-800 mm
Trademark
DRD
Origin
Tianjin, China
HS Code
37172100
Production Capacity
500, 000t/Year

Packaging & Delivery

Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
10.000kg

Product Description

Product Description

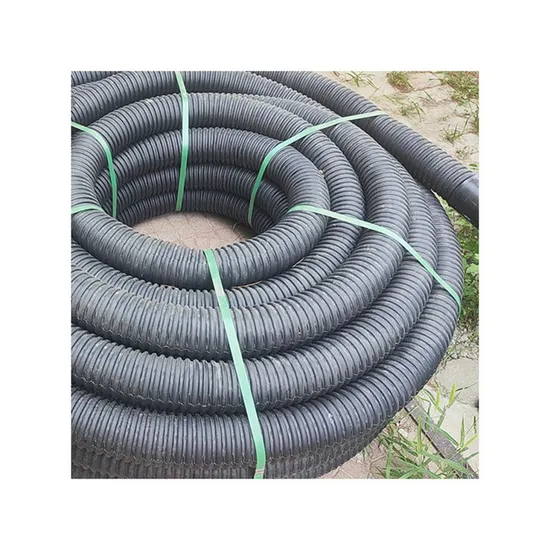

Perforated pipe plastic Flexible Perforated Corrugated Drain Pipe With Sock is used in land drainage(underground) applications ,By its name perforated pipe has perforations along the pipe. This allows water to enter the pipe through these perforated holes. They are thus suitable for sub soil drainage systems. Ideally suited to applications such as Field Drain or French Drains.
HDPE/UPVC underground drain pipe
HDPE/UPVC underground drain pipe is the main raw material of polyethylene resin and high density polyethylene (HDPE) has excellent chemical stability, aging resistance and environmental stress cracking. The HDPE double-wall bellows, which is produced by its raw materials, belong to the flexible pipe, which is extruded to fit the new type of pipe for the outdoor drainage and municipal discharge. HDPE/UPVC double wall corrugated pipe has the advantages of light weight, small displacement resistance, high compressive strength, corrosion resistance and convenient construction. Underground drainage pipe is an ideal material to replace cast iron pipe and cement pipe.
Product Parameters
Normal Size MM Class Inner Dia/ Outer Dia mm Length Marking
DN50 SN4/SN8 40/50 20m/50m/100m/per requested socked/unsocked
DN60 SN4/SN8 53/60 20m/50m/100m/per requested socked/unsocked
DN63 SN4/SN8 50/63 20m/50m/100m/per requested socked/unsocked
DN75 SN4/SN8 60/75 20m/50m/100m/per requested socked/unsocked
DN80 SN4/SN8 70/80 20m/50m/100m/per requested socked/unsocked
DN90 SN4/SN8 80/90 20m/50m/100m/per requested socked/unsocked
DN100 SN4/SN8 90/100 20m/50m/100m/per requested socked/unsocked
DN105 SN4/SN8 93/105 20m/50m/100m/per requested socked/unsocked
DN110 SN4/SN8 95/110 20m/50m/100m/per requested socked/unsocked
DN116 SN4/SN8 100/116 20m/50m/100m/per requested socked/unsocked
DN155 SN4/SN8 142/155 20m/50m/100m/per requested socked/unsocked
DN160 SN4/SN8 145/160 20m/50m/100m/per requested socked/unsocked

Technical data sheet :
Item Index
Ring stiffness SN4 (KN/m2) ≥4
Ring Stiffness SN8 (KN/m2) ≥8
Impact Strength (%) ≤10
Ring Suppleness The sample is smooth without any recurvation or wall loose
Oven Experiment no delamination and no crack
Creep Rate ≤4
Features perforated large diameter hdpe corrugated drainage pipe
1. It has the characteristics of light weight, high ring stiffness, convenient construction,transportation and installation,low installation cost, high ultraviolet resistance stability and good flexibility etc.Compared with other pipes in same diameter,the flow rate of HDPE double-wall corrugated pipe is higher because of its smooth inner wall.
2. HDPE double-wall corrugated pipe adopts annular structure wall pipe and optimized corrugated structure, so that the pipe has greater strength and appropriate flexibility per unit weight, which makes the raw material more efficient.
3. Reliable connection to prevent leakage:HDPE double-wall corrugated pipe adopts reinforced design in socket and it is connected with sealing rubber ring which makes the pipe more firm and reliable before and after connection.And the strict control of the size of the socket joint makes the installation more convenient and leakage prevention more effective.
4. Implement the standard "Buried Polyethylene (PE) Structural Piping System Part I: Polyethylene Double Wall Corrugated Pipe" GB/T19472.1-2004
Company Profile Our unmatched expertise enables us to serve our clients with utmost accuracy than ourindustry competitors. With more than 20 years' hardwork, we have established ourselves asa reliable and worthy supplier of plastic pipes and fittings. We ensure that the quality of ourrange meets the requirements of our clients. Our range finds applications in irrigation, watertransportation, drainage, dredging, sand&mud suction, gas transportation, geothermal, communication cable protection and construction.
We cater basically to European countries, North America countries, Sout America coun.tries, Oceania countries, Asian countries, Middle East, African countries and supply all overChina under the able guidance of our company's long-term planning strategy and view ofhonest and trustworthy value. Welcome customers to visit our factory, and go forward hand inhand with us!
Certifications Packaging & Shipping FAQ Q: What the Raw material ?
A: We only use 100% virgin raw material.
Q: What is your MOQ?
A: As customer's request.
Q: why choose us?
A: We are a professional and leader of pipe fitting factory, we have competitive price an faster delivery time , and we insure our quality is the second to none.
Q: How to buy the product?
A: Contact with us by email or by Trade Manager, and inform us all information which you want, or tell us which kind of products you want? will contact you immediately, or we could recommend style to you.
Q: Can you put your Design and logo on product?
A: Yes, we have professional design service team, we can make any sample as your design, and also can put your logo on products.
Q: What's the payment term?
A: We can accept for L/C, T/T. Any other payment as your request.
Q: Still have a lot of questions?
A: Please feel free to contact with me ,welcome.
