Taiwan Association Vmc850 CNC Milling Machine 5-Axis with Nc Tilting Rotary Table

Product Description

Product Description

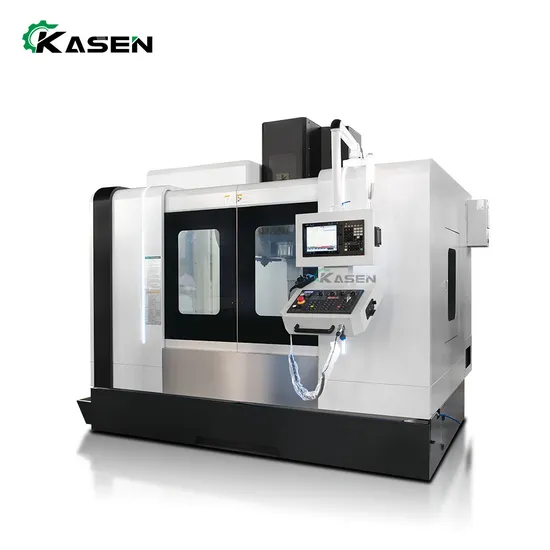

Taiwan high precision 3 4 5-axis FANUC system metal cutting CNC Mlilling machine vmc1160 CNC Machining Center
Features:
1. The CNC Machine Tool Body Has Undergone a Complete Casting Process To Ensure The Quality Of The Product
2. Taiwan Spindle (Speed, Brand, Can Be Matched According To Customer Requirements)
3. Taiwan Ball Screw And Locking Nut
4. Taiwan Pressure Cylinder
5.Japanese NSk Bearing Germany R+W Coupling
6. Automatic Lubrication System
7.Chip Conveyor At Optional (According To Customer Requirements) Optional Configuration:
System: Syntec,Siemens,Fanuc Mitsubishi
24 Arm Tool Magazine
4th Axis, 5-axis
Spindle Oil Cooling
Chip Conveyor Oil-Water Separator
Air conditioner
Direct-connected electric spindle 12000RPM
Main technical specifications:

specifications	units	VMC1160
Working table	Table size	1200×600mm
	T-slot	5-18-100mm
	Max loading capacity of table	1000kg
Spindle	Spindle taper	BT40
	Spindle speed	8000rpm
	Spindle power	11kw
Travel	X,Y,Z axis travel	1100×600×600mm
	Distance from spindle nose to table	120-720mm
	Distance from spindle center to vertical guide way surface	600mm
Feed	Rapid movement speed X,Y,Z	24/24/24m/min
	Feed rate of cutting X,Y,Z	1~10000mm/min
Three axis	X Y Z axis motor torque	23/23/23NM
	X Y Z axis linear guide rail width	45mm
	X Y Z lead screw size	4012
	X Y Z sliding block no	2006/4/6
Tools capacity	Tools capacity	24T
	Max tool weight	8kg
	Max length	φ78/300mm
	Tool magazine type	Arm type
Precision	Positioning accuracy X/Y/Z	0.0075mm
	Repeated positioning accuracyX/Y/Z	0.005mm
Machine tool	Machine size	2550*3200*2650m
	Casting material model	HT300
	Machine hardness	45-50rkc
	Machine weight	8000kg

Our main products are :
CNC Lathe Machine, CNC machining center, CNC Milling Machine, CNC Turning Center, Lathe machine, Wire cutting machine,Milling machines,,Drilling machine, Sawing machine, Grinding machine and other metal-working machines.
Detailed Photos


After Sales Service
SERVICE SUPPORT
we KASEN fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.

1.Warranty

The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.

2.Quick Response

Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most.

3.Online Technical Support

On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions.

4.Overseas Commissioning and Installation
This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
