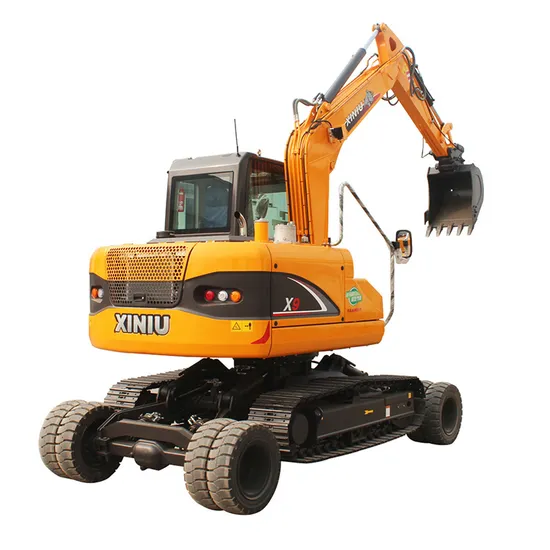

Rhinoceros Irene 9000 Kg Operating Weight Wheel Crawler Excavator

Product Description

Crawler Wheel Excavator X9 Product Application 1. Imported Yanmar engine, powerful and reliable performance. Meet to the china three emission standards, saving fuel 30% than last generation.
2. Import Germany Rexroth system, stable performance. Equipped with reinforced walking device and famous tires.
3. X9 Wheel-crawler excavator is with national invention patent which is totally researched and developed by our company, the first design in the world.
Convenient moving, fast travelling speed, quick transferring from wheels to track walking. The wheel travel device can be quickly disassembled when required.

SPECIFICATIONS FOR 9 TON WHEEL CRAWLER EXCAVATOR
Engine	Engine model:	YANMAR 4TNV94L-BNBKC	Max. torque	193.2-210.6 N.m/1260±100rpm
	No. of cylinders:	4	Engine power/rpm	33.7Kw/2100rpm
	Displacement	3.054L	Place of origin	Japan
Main performance parameters	Wheel travelling speed	30km/h	Track travelling speed	2.3km/h
	Swing speed	9rpm	Max.grade ability	30°
	Overall dimension	6570x2120x2980	Total weight	8770kg
Hydraulic system	Hydraulic system	Rexroth	Pump	variable capacity pump
	Pressure	25Mpa	Displacement	132L/min
	Capacity of hydraulic tank	175L

Packaging & Shipping one 40HQ load two units




Company Information

MAIN PRODUCTS



FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
