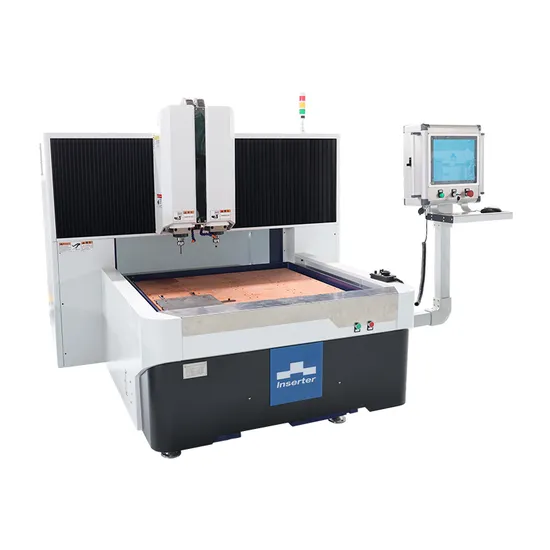

High Efficiency Fully CNC Programming and Processing CNC Drilling Tapping Milling Center

Product Description

Product Features
1.The CNC drilling, tapping and milling center equipment adopts a six-axis CNC system, dual spindles, supports countersinking and tapping functions, has efficient processing capabilities, and supports online + offline programming. The processing efficiency can reach up to 70 countersinks per minute.
2.The CNC system has full closed-loop control to improve processing accuracy and product quality. The mobile workbench design facilitates product positioning and clamping, reducing the labor intensity of workers. Full CNC programming processing effectively avoids missed holes, and is an efficient and accurate processing equipment.

Product Parameters

Chuck model	ER25
Number of spindle axes	2
Spindle speed	0~3000rpm/min
Idle speed	0-40000 mm/min
Processing speed	0-15000 mm/min
Processing accuracy	± 0.05/300 mm
Repeat positioning accuracy	± 0.03/300mm
Working stroke of X, Y, and Z axes	1000*800*200 mm(X*Y*Z)
Power requirements	220V/50HZ
Dimensions	1900*2050*1600
