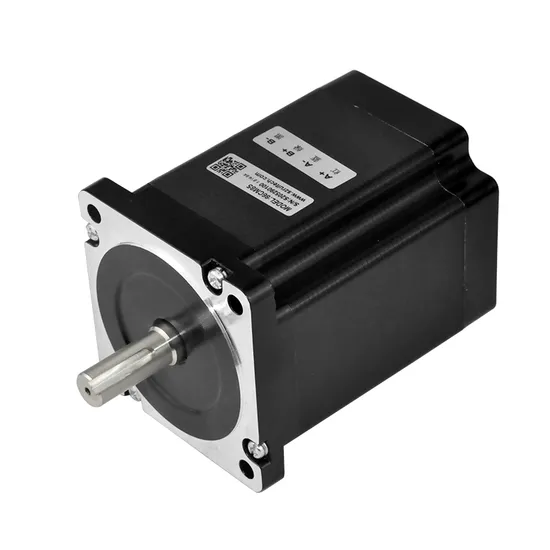

NEMA34 DC 0.9 Degree 1.8 Degree 4 Wire Stepper Motor for Cutting Machine

Product Description

Products Description Product Paramenters

Phases	2
Step Angle	1.8°±5%
Step Accuracy	65N(5.6 Lbs.)Push
	155N(15 Lbs.)Pull
Radial	220N(6.5 Lbs.)At End Shaft
IP Rating	40
Operating Temp	-20ºC~ +50ºC
Insulation Class	B,130ºC
Insulation Resistance	100MegOhms

MODEL Rated Current (A) PhaseResistance (Ω) Phase Inductance (mH) Lead Wire (No.) Holding Torque (N.m) Motor Length L(mm) Rotor Inertia (g.cm²) Motor Weight (Kg) 86HB65F4AB 4 0.55 3.5 4 3 65 850 2 86HB75F5PJ 5 0.75 7 4 75 1050 2.3 86HB80F5PJ 5.5 0.45 3 4.5 80 1250 2.5 86HB98F5PJ 5 0.6 5 6 98 1550 3 86HB113F5PJ 5 0.6 5 7 113 1600 3.6 86HB118F6PJ 6 0.6 6.5 8.5 118 1800 3.8 86HB127F6PJ 6 0.6 5.5 8.9 127 2200 4.5 86HB156F6PJ 6 0.7 3.5 10 156 2500 5
