Hongfa Sandwich Panel Machine Drywall Board Machinery Concrete Wall Panel Lightweight Foam Concrete Wall Panel Machine Price Gypsum Board Plant Machinery

Product Description

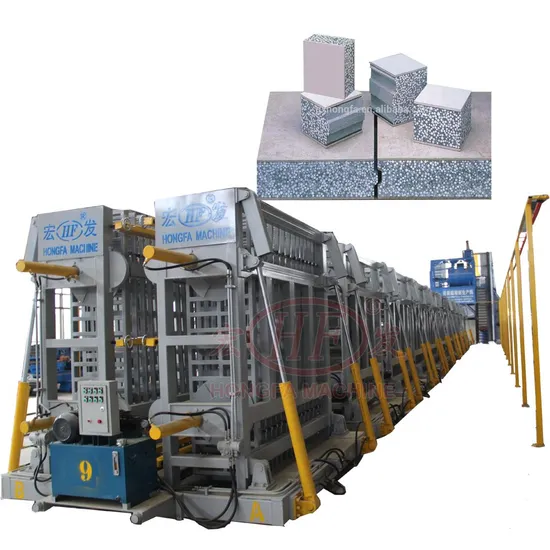

Hongfa Sandwich Panel Machine Drywall Board Machinery Concrete Wall Panel Lightweight Foam Concrete Wall Panel Machine Price Gypsum Board Plant Machinery
Wall panel for concrete precast houses:
1.Full Automatic
2.Eco Saving and Advanced Technology
3.Low cost and high capacity
4.ISO9001-2015 5.Adopts touch screen control, automatic filling, electronic weighing, temperature control, material level control to realize automatic production.
EPS Foam Cement Panel Machine, Sandwich Panel Production Line, Lightweight Concrete Wall Panel Making Machine for Construction Material Main Machine Parts:

Moulding Machine Parameter and Productivity
Overall dimensions(mm)	Power(KW)	Output / Pieces per mould
		60mm	75mm	90mm	100mm	120mm	150mm
3380*3200*2680	4	40pcs	36pcs	32pcs	30pcs	26pcs	22pcs

6. HFP530A full automatic lightweight concrete wall panel system is Hongfa patent product, for 15 sets molding machine, total production line only needs 5 workers, labor density and intensity is low.
Raw materials :
Ordinary Portland Cement, Lower Alkalinity Sulfur Acid Salt Aluminum Cement, Polystyrene Foam, Sand, Additives or Fly Ash(Coal Boiler), Water, Perlite, etc.
Main Feasture:

(1)The machine adopts PLC and touch screen control, automatic filling, electronic weighing, temperature control, material level control to realize automatic production.

(2) With the same machine, it can adjust the panel size and thickness. The thickness will be from 60 to 250mm.
(3) The closed constant pressure foamng barrel features of high heating efficiency and saves stem.
(4)High precise guiding pressure reducing valve controls the temperature and steam pressure of the closed barrel, ensuring the outcome pressure of the valve constant and the inner temperature controlled wihin ±1%, which keeps the foamed material equal and prevents the bead agglomerate because of the bad temperature control.
(5)With photoelectric or vibration sensor to control material level, ensuring density tolerance within ±3%.
(6)The machine is equipped with fluidized bed dryer, including drying, automatic sieving, depluming and material conveying to silos.
(7)Most components are of world-famous brands, with reliable performance, stable quality, long service life and low maintenance cost.
(8)The machine can realize the primary and second expansion.
Suggested Staffing Table:

Position	Amount(Person)
Moulding/pouring	1
Demoulding&Packing	1
EPS Expander Operation/raw materials	1
Mixer Operation	1
Transportation	1
Total	5

Hongfa Group Produce Kinds of Sandwich Panel Machine Drywall Board Machinery Concrete Wall Panel Lightweight Foam Concrete Wall Panel Machine Price Gypsum Board Plant Machinery :
♥ Automatic Vertical Hydraulic & Manually Type Production Line
♥ Horizontal Wall Panel Production Line
About Hongfa Group
Hongfa Group Established in 1990.
A leader developer& Manufacturer of Construction Material Machinery.
Main business Range & Products:
Lightweight Wall Panel Production Line, AAC Block Production Line, Full Automatic Concrete Block Production Line, Artificial Quartz Plate Production Line,
Organic fertilizer equipment, hydroelectric power plant, Portland Cement Plant, Sugar cane sugar extraction equipment,Quicklime kiln equipment.Concrete Pipe Machine, Concrete Tile Machine, Concrete pipe machine, Bidirectional Hydraulic Brick Maker, Mining Machinery, Concrete Batching plant, Stereo Parking Equipment,etc
Hongfa Strengths
More than 30 years experience. 1500 employee (50+engineers)
2) Total 4 factories with 440,000M2 and annual sell above USD100 Million .
3) 10,000 customers and fulfillment to over 120 countries.
4) Continuous service and logistics system.
5) High quality products and competitive price.We hope we can cooperate with each other and establish a win-win business relationship.
Our factory Group'Honor
1.One of Top Ten Influential Brands in China Brick &Tile Industry
2.National Enterprice Abiding By Contract & Keeping Good Faith
3.Quality and Credibility of the Dual-protectionb Demonstration Unit
4.High and New Tech Enterprise
5.Famous Trademark of China
6.Star Enterprise with China Patent
7.AAA Grade Credit Enterprise
8.Consumer Satisfaction Unit
9.One of Top 100 building Material Industry Brands of China
10.One of Top Ten Good Faith Units
11.Advanced Exporter in Guangxi Province
12.Advance Quality Management Unit
Contact Information: Foreign Trade Dept.: Frida Fu
Guangxi Hongfa Heavy Machinery Co., Ltd.
Tel.: +86 188 7799 1859
Website: gxhongfa.en.made-in-china.com
Factory Add.: Yilingyan Industrial Zone, Nanning city, Guangxi province, China
Welcome to contact me.
Any inquiry would get our professional and prompt reply!
