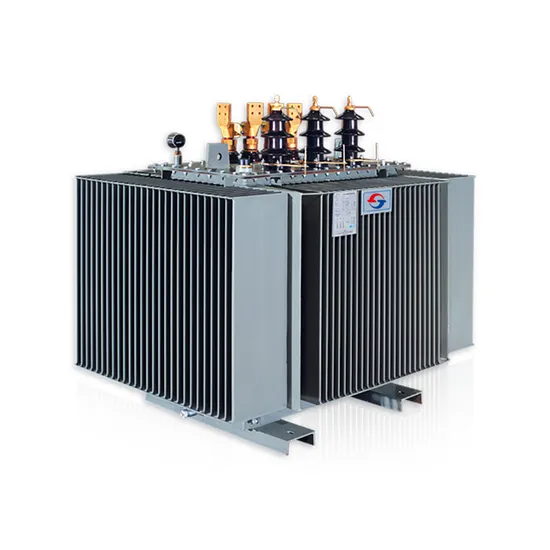

1250kVA 6kv 10kv 11kv 0.4kv Electrical Three Phase Distribution Power Oil Filled Transformer

Product Description

Product Description Oil immersed transformer uses oil as the main insulation medium and rely on oil as the cooling medium. It adopts a sealed structure to completely isolate the transformer oil from the surrounding air, making the operation of the transformer safer, more reliable, and easier to maintain.

Features:
1. The high-voltage and low-voltage winding of oil immersed transformer generally adopt a cylindrical structure, which ensures a balanced distribution of ampere turns.
2. The coil and core are vacuum dried, and the transformer oil is filtered and injected through a vacuum process.
3. The oil tank adopts corrugated plates, which can compensate for the volume change of oil caused by temperature changes.
Our Advantages:
1. The spiral coil with longitudinal oil duct, has the performance of good heat dissipation, low magnetic leakage, high mechanical strength; And the reliable supporting structure can greatly improve the short circuit withstand ability.
2. The iron core adopts the stacked structure, it is composed of the silicon steel sheets with thickness less than 0.35mm and high magnetic conductivity, which can reduce the no-load loss and no-load current of the transformer.
3. The insulation materials have high heat resistance, which can withstand overvoltage and overcurrent during operation.
4.The transformer oil has low viscosity, good heat transfer performance and insulation performance, which can effectively protect the iron core and winding, reduce the aging of the insulation materials, and extend the service life of the transformer.
5. The corrugated oil tank is manufactured from high-quality cold-rolled steel plates on a dedicated production line, its surface is treated with deoiling, rust removal, and phosphating before being coated with a three proof (rain proof, moisture proof, and salt spray proof) paint, which can enhance operational reliability and durability, reduce the maintenance costs.
6. The sealing rings are made of the high-quality rubber materials, which can effectively slow the aging process, isolate the external air and prevent the transformer oil leakage.
Product Parameters

Model	Rated Capacity (KVA)	Rated Voltage (KV)			Connection Method	No-load Loss (W)	Load Loss (W)	No-load Current (%)	Short Circuit Impedance (%)
		High Voltage	Voltage Regulation Range	Low Voltage
S11-M-30	30	6 6.3 10 10.5 11	±5% ±2×2.5%	0.4	Yyn0 Dyn11	100	630/600	1.5	4
S11-M-50	50					130	910/870	1.3	4
S11-M-63	63					150	1090/1040	1.2	4
S11-M-80	80					180	1310/1250	1.2	4
S11-M-100	100					200	1580/1500	1.1	4
S11-M-125	125					240	1890/1800	1.1	4
S11-M-160	160					280	2310/2200	1	4
S11-M-200	200					340	2730/2600	1	4
S11-M-250	250					400	3200/3050	0.9	4
S11-M-315	315					480	3830/3650	0.9	4
S11-M-400	400					570	4520/4300	0.8	4
S11-M-500	500					680	5410/5150	0.8	4
S11-M-630	630					810	6200	0.6	4.5
S11-M-800	800					980	7500	0.6	4.5
S11-M-1000	1000					1150	10300	0.6	4.5
S11-M-1250	1250					1360	12000	0.5	4.5
S11-M-1600	1600					1640	14500	0.5	4.5
S11-M-2000	2000					1940	18300	0.4	5
S11-M-2500	2500					2290	21200	0.4	5
S11-M-3150	3150					2730	24300	0.4	5

Production Process
Company Profile

Guangdong Shengte Electric Co., Ltd., based in Foshan, China, is a distinguished transformer manufacturer known for reliability and exceptional after-sales service. With over a decade of experience, we've provided high-quality, cost-efficient transformers for governmental and private sector projects worldwide, earning a reputation for excellence.Our commitment to quality is demonstrated by meeting the rigorous standards of our German Power Utility clients, ensuring only the highest quality solutions.Spanning 10,000 square meters, our Foshan facility is equipped with cutting-edge production and testing equipment, enabling us to offer customized solutions, including OEM and ODM services. Our product range includes oil-immersed transformers, resin cast dry-type transformers, pad mounted transformers, prefabricated substations, and more.Certified by ILAC-MRA and CNAS, our IEC certificate underscores our dedication to international quality standards. Additionally, we hold ISO9001, CE, and Innovative Product Certifications, with active pursuit of the UL certificate to further demonstrate our commitment to global compliance.

Certifications
Project Cases
Exhibition
Packaging & Shipping
Q1: Are you a manufacturer or trading company?
A1: Our factory covers an area of over 10000m2, we can produce 2000 more transformers each year.
Q2: How long have you been worked in the electric industry?
A2: We have been worked in the electric industry for more than 10 years. We have own research and development department that has 15 engineering technicians.
Q3: How long is the warranty period?
A3: It is 1 year.
Q4: Would you accept using customer's logo?
A4: Yes, we can provide OEM and ODM service.
Q5: What's the MOQ?
A5: It is 1 set.
Q6: What's the payment terms?
A6: We accept T/T, Western Union, PayPal, etc.
Q7: How long is the delivery time?
A7: Generally it is 20-30 days, it depends on the order quantity.
Q8: What is the standard of package?
A8: Export standard package or special package according to customer's requirement.
