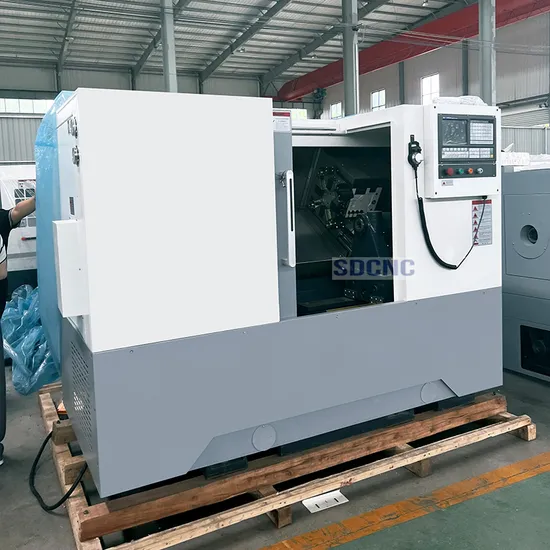

Factory Directly Supply Tck50 Mini Turning Lathe CNC Lathe
| US$24,500.00-26,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TCK50
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Certification
GS, CE, ISO 9001
Condition
New
CNC Control System
Customer′s Requirement
CNC or Not
CNC
Keyword
CNC Metal Lathe Machine
Keyword2
Slant Bed CNC Lathe
Transport Package
Wood Packing
Specification
2300x1700x1930
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
2300.00cm * 1700.00cm * 1930.00cm
Package Gross Weight
3600.000kg
Product Description
Product Parameters
Product main technical parameters:
1. 45 degrees slant bed CNC lathe machine. 2. Higher accuracy Taiwan linear guide. 3. Chip conveying capacity is large and convenient, customer could choose. 4. Chip conveying in the front or in the back. 5. X, Z direction servo motor through high torque low inertia flexible coupling directly connected with the screw, screw supporting
the use of pre-stretching structure. 6. Gang type tool post. 7. High-speed high-precision high-rigidity shell-type spindle unit, servo spindle motor, can achieve higher spindle speeds. 8. Use advanced centralized lubrication system uses. 9. Machine with full protection design,waterproof debris reliable, easy maintenance.
| item | unit | TCK50 |
| Turning diameter of bed surface | mm | Φ500 |
| Maximum turning diameter on a skateboard | mm | Φ320 |
| Working length | mm | 500 |
| Main motor power | KW | 7.5 |
| Spindle speed | rpm | 2500 |
| Main shaft hole diameter | mm | Φ80 |
| X-axis travel | mm | 220 |
| X-axis motor torque | NM | 8 |
| Z-axis travel | mm | 500 |
| Z-axis motor torque | NM | 12 |
| X.Z axis connection mode | Direct connection | |
| Maximum spindle speed | rpm | 3000 |
| Spindle speed progression | Stepless speed change | |
| Spindle end form and code | A2-8 | |
| Inner diameter of spindle through hole | mm | Φ80 |
| Inner diameter of main shaft drawpipe | mm | Φ56 |
| Standard chuck specifications | 8″ | |
| Fast moving speed | m/min | 20 |
| Tool rest form | Horizontal 8 station hydraulic tool tower | |
| X/Z bidirectional positioning accuracy | mm | ±0.008 |
| X/Z one-way repeated positioning accuracy | mm | ±0.004 |
| Sleeve diameter | mm | 70 |
| Sleeve travel | mm | 100 |
| Tailstock travel | mm | 450 |
| Tailstock sleeve taper hole | Morse 5# | |
| Bed form and slope | Integral /35° |
